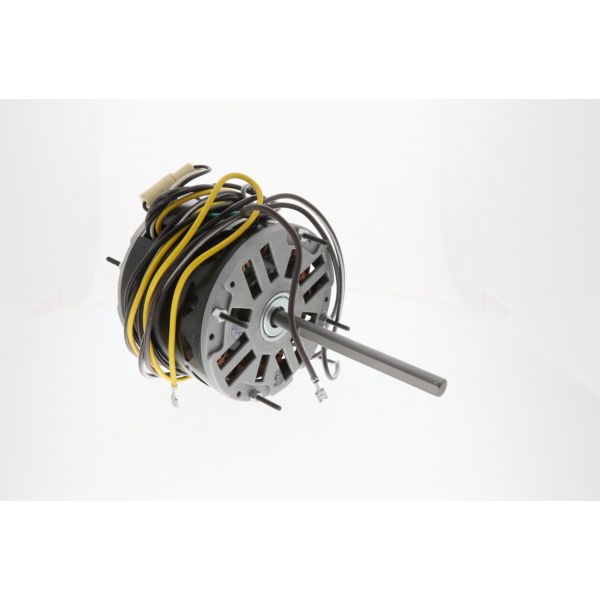

Century Motors ORM1036 1/3 HP 1-Speed PSC Motor 1075 RPM 208-230V 1-Phase 48Y Frame

Special Price $210.37 Regular Price $233.51
In stock
SKU
ORM1036
The Century Motors ORM1036 1/3 HP Motor with single phase 1 speed is ideal for use in HVAC systems. It operates at a speed of 1075 RPM and is compatible with electrical supplies of 208-230V. This motor is an electromagnetic one whereby through passing of an electric current through the winding produces a magnetic field. This one gets in contact with the field of the rotor and therefore rotates. This type of motion is then transferred to the connected HVAC equipment for example fans, blowers, and pumps for the generation of airflow as well as heat transfer.
https://www.partshnc.com/media/catalog/product/o/r/orm1036-century-motors_partshnc.jpg

Specifications

  • Type: Motor
  • Horsepower: 1/3HP
  • Speed: 1075 RPM
  • Voltage: 208-230V
  • Number of Speeds: 1

Air-moving and mechanical functions within an HVAC appliance rely on motors to drive connected components during operation. The Century Motors ORM1036 is a motor designed to provide the driving action required by its connected component within its HVAC application. Its shaft movement enables the attached component to carry out its intended mechanical function as the system operates. This supports the operation of the connected assembly and its role within the broader system.

Permanent Split Capacitor Motor Operation:
A Permanent Split Capacitor (PSC) motor uses a capacitor that remains in the motor's operating circuit during normal operation. The capacitor establishes the electrical phase relationship used by the motor windings, supporting the electromagnetic process that generates torque. This torque produces the rotational movement required for motor operation.

Single-Speed Operation and Frame Designation:
A single-speed motor operates at one designated speed rather than providing multiple selectable speed settings. The Century Motors ORM1036 has a specified speed of 1075 RPM and carries a 48Y frame designation. The frame designation identifies the stated frame configuration of the motor and should be treated as a product-identification characteristic rather than an assumption about specific mounting dimensions.

Replacement Guidelines:
Replacement may be appropriate when the existing motor fails to start reliably or can no longer provide dependable rotational output. It may also be necessary when confirmed motor deterioration or abnormal operation affects reliable performance. Before replacing the ORM1036 1-Speed PSC Motor, verify the original part number and confirm that the replacement meets the applicable equipment requirements.

Common Failure Symptoms:

  • Motor fails to start when operation is required.
  • Motor operates intermittently.
  • Motor stops unexpectedly during operation.
  • Unusual noise occurs during motor operation.
  • Excessive vibration occurs during operation.

Equipment Compatibility:
The Century Motors ORM1036 should be matched to an application requiring the corresponding 1-speed PSC motor configuration. When evaluating this motor for replacement, compare the existing part number and applicable equipment information with the documented product characteristics, including the PSC technology, 1-speed configuration, 1/3 HP rating, 1075 RPM speed, 208–230V supply, single-phase configuration, and 48Y frame designation. Confirm the applicable equipment requirements before installation rather than assuming compatibility from individual ratings alone.

Technical Specifications:
Part Identification:
Brand: Century Motors
Part Number: ORM1036
Product Type: 1-Speed PSC Motor

Electrical:
Voltage: 208–230V
Phase: 1-Phase

Mechanical:
Horsepower: 1/3 HP
Rated Speed: 1075 RPM
Frame: 48Y Frame

Write Your Own Review
You're reviewing:Century Motors ORM1036 1/3 HP 1-Speed PSC Motor 1075 RPM 208-230V 1-Phase 48Y Frame
Your Rating
Customer Questions
Which type of motor is identified by the Century Motors ORM1036 part number?

The ORM1036 is identified as a 1-speed Permanent Split Capacitor (PSC) motor rated at 1/3 HP, 1075 RPM, 208–230V, and single-phase.

How does PSC technology support motor rotation?

A PSC motor keeps a capacitor in its operating circuit. The capacitor establishes the electrical phase relationship between the motor windings, supporting the electromagnetic process that produces rotational torque.

What should be understood from the 48Y frame designation?

The 48Y designation identifies the motor's stated frame configuration. It should not be used by itself to infer specific mounting dimensions or physical compatibility.

When evaluating the ORM1036 for a replacement application, which information should be reviewed?

Review the existing part number and applicable equipment information along with the documented motor type, electrical characteristics, speed, horsepower, and frame designation.

Before installing a replacement ORM1036, what should be verified?

Verify the original part number and confirm that the replacement meets the applicable equipment requirements before installation.
