Carrier HD44AR136 1/2 HP Blower Motor 1050 RPM CCW 120/240V 48Y Frame 60 Hz

Be the first to review this product
Special Price $727.78 Regular Price $911.07
In stock
SKU
HD44AR136

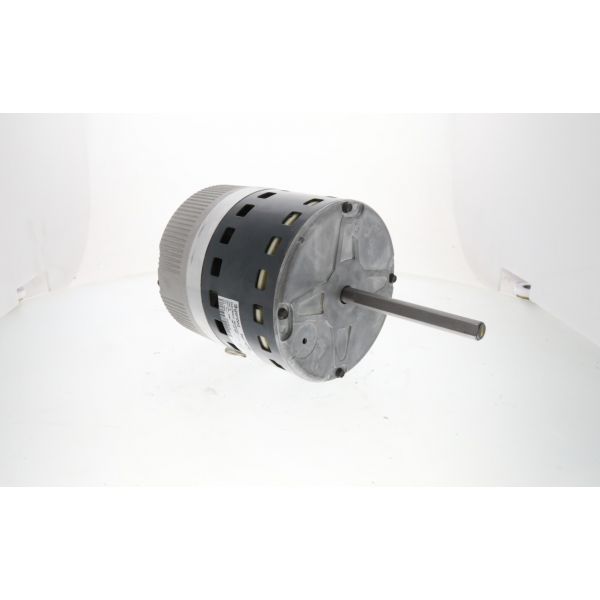

The Carrier HD44AR136 is a replacement blower motor for HVAC systems. The motor is a 1/2 horsepower single phase motor that will run on either 120V or 240V electrical supply. This motor runs at 1050 RPM and circulates air through your home to efficiently heat and cool. A blower motor is part of a typical HVAC system and is found in furnace or air handler unit. When energized, the motor turns a fan blade that then pushes air through the ductwork into the rooms. The design is carrier efficient and improves performance and reliability over older motors.
Add to Wish List
Motors & Capacitors, Blower Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/H/D/HD44AR136_carrier_partshnc.jpg

Specifications

  • Length: 5.4 "
  • Width: 5.4 "
  • Height: 10.1 "
  • CSA Listing: Yes
  • Frequency: 60Hz
  • Horsepower: 1/2 Hp
  • Phase: Singile
  • Voltage: 120/240V
  • RPM (Revolutions Per Minute): 1050 RPM Weight: 11.51 Lbs

Blower motors provide the mechanical movement needed to operate fans and blowers within HVAC systems. The Carrier HD44AR136 Blower Motor drives the connected blower through its rotating shaft. It is used within the blower section of heating and cooling systems, such as furnaces or air handlers, where the blower circulates air through the system.

Motor Power and Shaft Movement:
The motor converts electrical input into mechanical shaft rotation during operation. This rotational output is transferred through the shaft to the connected blower, providing the mechanical movement needed for the blower to operate.

Blower Drive and Air Movement:
The motor's rotating shaft drives the associated blower assembly. As the blower rotates, it moves air through the HVAC system, supporting air circulation within the connected heating or cooling equipment.

Replacement Guidelines:
Replacement may be appropriate when the HD44AR136 Blower Motor develops inconsistent shaft rotation or can no longer provide the mechanical drive required by the connected blower. Before ordering, compare the existing part number with the applicable equipment requirements and verified specifications.

Common Failure Symptoms:

  • Motor fails to start
  • Motor stops during operation
  • Intermittent motor operation
  • Irregular motor rotation
  • Unusual noise or vibration

Equipment Compatibility:
The Carrier HD44AR136 Blower Motor is associated with equipment models N95ESN, PG95ESAA66120DAA, N95ESN1202422A1, and R95ESN1202422A1. Before selection, compare the existing part number, equipment model, motor configuration, and applicable blower-motor requirements with the original equipment documentation.

Technical Specifications:
Part Identification:
Brand: Carrier
Part Number: HD44AR136
Product Type: Blower Motor

Electrical:
Voltage: 120/240V
Current: 7.7/4.3 Amp
Frequency: 60 Hz

Mechanical:
Horsepower: 1/2 HP
Speed: 1050 RPM
Rotation: CCW
Frame: 48Y

Reviews
Write Your Own Review
You're reviewing:Carrier HD44AR136 1/2 HP Blower Motor 1050 RPM CCW 120/240V 48Y Frame 60 Hz
Your Rating
Product Questions (5)
Customer Questions
What is the Carrier HD44AR136?

The Carrier HD44AR136 is a blower motor that provides rotational drive for a connected blower assembly.

What is the HD44AR136 used for?

It supplies the mechanical rotation required for the blower to circulate air through the associated heating or cooling system.

Which equipment models are associated with the Carrier HD44AR136?

The listed equipment models are N95ESN, PG95ESAA66120DAA, N95ESN1202422A1, and R95ESN1202422A1.

Can the HD44AR136 be used in another Carrier blower application?

Not automatically. The specific equipment model and required blower-motor configuration should be verified before selecting it for another application.

What should I verify before ordering the HD44AR136?

Verify the existing HD44AR136 part number against the equipment documentation and confirm the required motor configuration, mounting arrangement, and applicable blower requirements.
