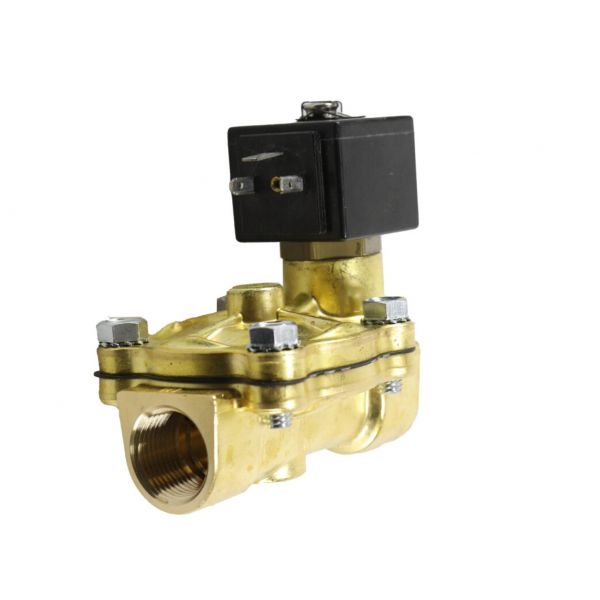

Parker Fluid Control 12F24C2248AAFPH05 Solenoid Valve 120V N/C

Be the first to review this product
Special Price $424.54 Regular Price $471.24
In stock
SKU
12F24C2248AAFPH05

The Parker Fluid Control 12F24C2248AAFPH05 is a solenoid valve designed for controlling fluid flow in HVAC systems. It relies on an electric current that regulates a magnetic field, which subsequently opens or shuts a valve. When without power, the valve stays closed, blocking fluid flow. Applying 120V AC power triggers the solenoid, which raises the valve and enables fluid to flow. This valve frequently appears in air handlers, chillers, and other HVAC equipment. It is necessary for operations that involve regulating water flow to coils, regulating refrigerant flow, and preserving system pressure. By offering accurate electricity regulation of fluid flow, the Parker solenoid valve significantly enhances the operational effectiveness and reliability of HVAC systems. It ensures ideal temperature regulation without minimising energy consumption.

Add to Wish List
Parker Pilot Valves, HVAC Controls & Electrical
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/2/12f24c2248aafph05.jpg

PRODUCT OVERVIEW:
As an essential flow control component in commercial and industrial systems, the Parker Fluid Control 12F24C2248AAFPH05 N/C Solenoid Valve regulates the movement of fluid through a system passage. Featuring a Normally Closed (N/C) configuration, this solenoid valve remains closed to block flow until an electrical signal is applied. Operating on a 120-volt electrical supply, the valve shifts from its default closed state to an open state when powered, allowing controlled fluid admission and line isolation within compatible equipment.

ELECTROMAGNETIC ACTUATION OPERATION:
Within the actuator assembly, the solenoid winding generates a magnetic field when energized. This magnetic field produces movement of the internal plunger. The plunger transfers this movement to the valve mechanism, allowing the operating position to change according to the control signal.

CONTROLLED FLUID FLOW REGULATION:
Through the valve body, the internal mechanism manages the fluid passage between the inlet and outlet. The seating arrangement determines the amount of passage available for fluid movement. Actuation changes the position of this mechanism to regulate flow through the connected fluid pathway.

REPLACEMENT GUIDELINES:
Replacement of the solenoid valve is appropriate when coil burnout, seat wear, or mechanical binding prevents complete valve opening or tight sealing. Electrical failure of the coil can prevent the valve from generating the magnetic force required for actuation, while wear of internal sealing components may cause unwanted fluid leakage through the valve body. Replacing a compromised Parker Fluid Control 12F24C2248AAFPH05 restores controlled fluid operation and proper shutoff performance.

Common Failure Symptoms:

  • Solenoid valve fails to open when power is applied to the coil connections.
  • Fluid continues to flow or leak past the valve seat when electrical power is disconnected.
  • Absence of an audible mechanical click sound when voltage is applied to the solenoid.
  • Loss of electrical continuity across the coil windings during testing.
  • Physical cracking or thermal damage visible on the solenoid housing.

EQUIPMENT COMPATIBILITY:
The Parker Fluid Control 12F24C2248AAFPH05 Solenoid Valve 120V N/C applies to specific equipment models designed by the manufacturer. Before purchasing, verify that the replacement part matches the exact attributes listed in the Technical Specifications table, including the brand, part number, product type, configuration, and voltage rating.

Technical Specifications:
Product identification:
Brand: Parker Fluid Control
Part Number: 12F24C2248AAFPH05
Product Type: Solenoid Valve
Physical specifications:
Configuration: Normally Closed (N/C)
Electrical specifications:
Voltage: 120V

Reviews
Write Your Own Review
You're reviewing:Parker Fluid Control 12F24C2248AAFPH05 Solenoid Valve 120V N/C
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Parker Fluid Control 12F24C2248AAFPH05 Solenoid Valve?

Regularly inspect the solenoid valve for debris or sediment in the valve body. Clean the internal components and check the coil for proper voltage. Ensure connections are tight and free from corrosion. Always disconnect power before servicing to prevent electrical hazards.

What are common issues with the Parker Fluid Control 12F24C2248AAFPH05 Solenoid Valve?

  • Valve failing to open or close properly.
  • Leaking around seals or fittings.
  • Electrical coil burnout or failure.
  • Erratic operation due to debris or contamination.

What is the Parker Fluid Control 12F24C2248AAFPH05 solenoid valve used for?

The Parker Fluid Control 12F24C2248AAFPH05 solenoid valve controls fluid passage through a connected line by opening or closing the internal flow path.

What does Normally Closed mean for the Parker 12F24C2248AAFPH05 valve?

Normally Closed means the valve maintains a closed flow path until the required electrical control condition is applied.

How does the Parker 12F24C2248AAFPH05 control fluid movement?

The solenoid mechanism responds to the equipment's electrical control command to change the valve position and regulate fluid passage.

What role does a solenoid valve play in a fluid-control system?

A solenoid valve provides an electrically controlled point in the fluid line where flow can be permitted or interrupted according to the system sequence.

Where is the Parker Fluid Control 12F24C2248AAFPH05 used?

The Parker Fluid Control 12F24C2248AAFPH05 is used in compatible fluid-control applications requiring an electrically operated normally closed solenoid valve.

Installation Steps

Step 1: Turn off power and fluid supply before starting.

Step 2: Remove the old valve by disconnecting piping and electrical connections.

Step 3: Position the new solenoid valve in line, ensuring correct flow direction.

Step 4: Secure the valve with mounting hardware or pipe fittings.

Step 5: Reconnect electrical wiring according to the unit’s diagram.

Step 6: Test for leaks and proper valve operation.
