Sporlan Controls 124363 10Ton Thermal Expansion Valve 7/8" X1 3/8" ODF R22

Special Price $529.51 Regular Price $587.75
In stock
SKU
124363

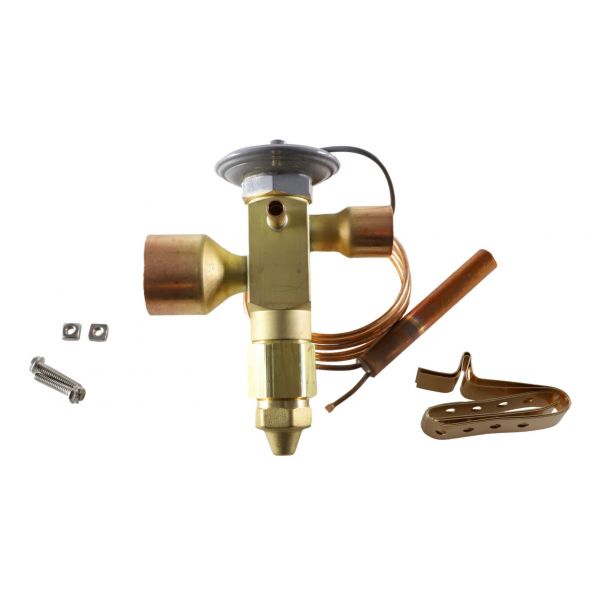

Sporlan Controls 124363 10-Ton Thermal-Expansion Valve is a critical part of the refrigerant flow evaporator coil in HVAC systems. Made with a durable stainless steel construction, it is built to last but with great performance as well. This expansion valve adjusts the flow to maintain optimal evaporator performance by its temperature and pressure. The valve ensures efficient cooling by careful control of refrigerant distribution such that flooding or starvation of the evaporator is avoided. Sporlan 124363 is for medium to large scale commercial HVAC systems as it improves the system efficiency, lowers energy costs and raises comfort levels.
https://www.partshnc.com/media/catalog/product/1/2/124363.jpg

Specifications

  • Weight: 0.37 lbs
  • Type: Sporlan thermostatic expansion valve
  • Material: Stainless Steel

PRODUCT OVERVIEW:
A thermal expansion valve regulates liquid refrigerant flow into the evaporator according to the cooling demand of the refrigeration system. The Sporlan Controls 124363 Thermal Expansion Valve is an OEM 10-ton component designed for R-22 applications with 7/8" × 1-3/8" ODF connections. It supports controlled refrigerant metering and evaporator superheat regulation during system operation.

THERMOSTATIC REFRIGERANT METERING:
The thermal expansion valve regulates liquid refrigerant delivery through its internal metering mechanism in response to changes in evaporator operating conditions. The thermostatic sensing mechanism responds to temperature and pressure variations, adjusting the valve opening to control refrigerant flow through the orifice. This operation helps maintain the required evaporator superheat as cooling demand changes.

PRESSURE REDUCTION AND EVAPORATOR FEEDING:
The expansion valve separates the high-pressure liquid refrigerant circuit from the low-pressure evaporator circuit. As R-22 refrigerant passes through the metering orifice, its pressure decreases, allowing it to enter the evaporator as a low-temperature liquid-vapor mixture. This pressure reduction prepares the refrigerant to absorb heat as it moves through the evaporator coil.

REPLACEMENT GUIDELINES:
Replace the Sporlan Controls 124363 TXV when internal contamination, mechanical wear, or valve malfunction prevents proper refrigerant metering. Inspect the valve body and ODF connections for physical damage or refrigerant leakage before installation. Confirm that the replacement matches the original valve's capacity, refrigerant requirement, and connection dimensions. Verify the part number and complete equipment requirements against the manufacturer's technical documentation before ordering.

COMMON FAILURE SYMPTOMS:

  • Restricted refrigerant flow can result in reduced evaporator cooling capacity.
  • Incorrect refrigerant metering can cause evaporator superheat readings to move outside the required operating range.
  • Improper refrigerant flow can contribute to evaporator coil frosting or icing.
  • A malfunctioning expansion valve can cause inconsistent cooling performance.
  • Abnormal refrigerant flow can be accompanied by unusual suction pressure readings.

EQUIPMENT COMPATIBILITY:
The Sporlan Controls 124363 is a 10-ton thermal expansion valve designed for HVAC and refrigeration systems utilizing R-22 refrigerant. It has 7/8" × 1-3/8" ODF solder connections. Verify the complete equipment model, refrigerant type, capacity, connection dimensions, and original valve configuration against manufacturer documentation before ordering. Do not assume compatibility based on the manufacturer name alone.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Sporlan Controls
Part Number/SKU: 124363
Product Type: Thermal Expansion Valve (TXV)
Operating Specifications
Capacity: 10 Tons
Refrigerant: R-22
Connections
Inlet Connection: 7/8" ODF
Outlet Connection: 1-3/8" ODF
Connection Type: ODF (Solder)

Write Your Own Review
You're reviewing:Sporlan Controls 124363 10Ton Thermal Expansion Valve 7/8" X1 3/8" ODF R22
Your Rating
Customer Questions
What maintenance is required for the Sporlan Controls 124363 Thermal Expansion Valve?

Regularly inspect the thermal expansion valve for refrigerant leaks and ensure the sensing bulb is securely attached. Clean connections to prevent blockage and maintain efficient refrigerant flow. Proper maintenance ensures stable cooling performance and system efficiency.

What are common issues with the Sporlan Controls 124363 Thermal Expansion Valve?

  • Refrigerant underfeeding or overfeeding due to incorrect superheat setting.
  • Valve clogging from debris or moisture in the refrigerant line.
  • Sensing bulb failure causing unstable temperature regulation.
  • Installation mismatch leading to inefficient cooling performance.

What is the Sporlan Controls 124363 Thermal Expansion Valve used for?

The Sporlan Controls 124363 is a 10-ton thermal expansion valve designed to regulate R-22 refrigerant flow into the evaporator. It supports controlled refrigerant metering according to system cooling demand.

How do I determine whether the Sporlan 124363 TXV is suitable for my refrigeration system?

Check the original valve part number, 10-ton capacity, R-22 refrigerant requirement, and 7/8" × 1-3/8" ODF connection dimensions against the equipment manufacturer's documentation. Do not assume compatibility based on the manufacturer name alone.

What is the importance of the connection sizes on the Sporlan 124363 TXV?

The valve uses 7/8" and 1-3/8" ODF solder connections. Matching the connection dimensions with the existing refrigerant lines is important when selecting a replacement valve.

What problems can occur when a thermal expansion valve does not regulate refrigerant flow correctly?

Incorrect refrigerant metering can cause abnormal evaporator superheat, reduced cooling capacity, inconsistent system performance, and evaporator coil frosting.

What information should I verify before ordering the Sporlan Controls 124363 replacement valve?

Verify the 124363 part number, 10-ton capacity, R-22 refrigerant type, 7/8" × 1-3/8" ODF connections, and complete equipment model against the manufacturer's technical documentation.

Installation Steps

Step 1: Isolate power and recover refrigerant safely before starting.

Step 2: Remove old valve and clean tubing ends thoroughly.

Step 3: Braze new valve using nitrogen purge to prevent oxidation.

Step 4: Attach sensing bulb securely and insulate properly.

Step 5: Pressure test, evacuate system, recharge, and verify superheat.
