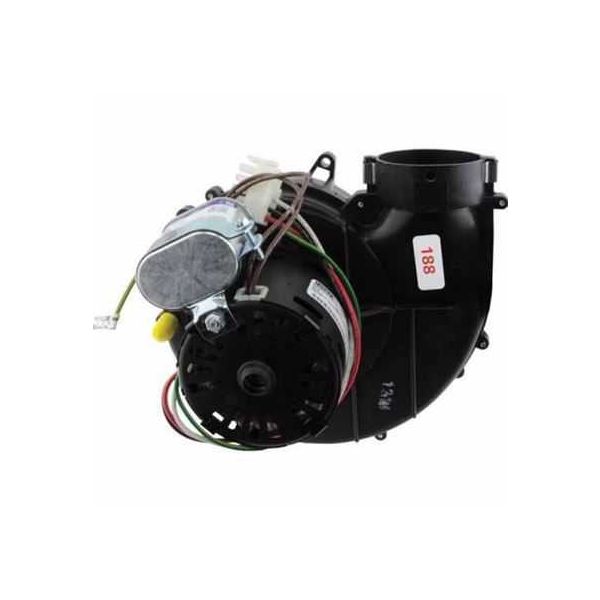

Rheem-Ruud 70-100612-03 2-Stage Inducer Assembly W/Gasket 120V

Special Price $305.60 Regular Price $339.22
In stock
SKU
70-100612-03
The Rheem-Ruud 70-100612-03 Inducer Assembly with Gasket is one of the most essential parts that help in the proper functioning of HVAC systems. This inducer assembly works at 120V. It operates through proper airflow within the furnace, passing the combustion products over the heat exchanger and then safely expelling them to the outside atmosphere. It is a crucialprocess if the furnace is to operate at its better and with the minimum of risks. The included gasket guarantees a tight fit and the absence of gas loss, which contributes to the assembly’s efficiency. This inducer assembly is used in furnaces and enhances combustion efficiency, prevents the accumulation of carbon monoxide, and guarantees proper furnace performance. They include safety, heating efficiency, and longer Durration of the furnace.
Manufacturer:
https://www.partshnc.com/media/catalog/product/7/0/70-100612-03.jpg

Specifications

  • Type: Inducer Assembly
  • Length: 12.35"
  • Width: 6.0"
  • Height: 6.0"
  • Voltage: 120V
  • Weight: 5.64 Lbs
Manufacturer Name: Rheem-Ruud
Product Number: 70-100612-03
OEM Part Number: 70-100612-03
Product Description: 120V 2Stg Inducer Assy W/Gskt
Weight:5.64lbs/2558.26g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Write Your Own Review
You're reviewing:Rheem-Ruud 70-100612-03 2-Stage Inducer Assembly W/Gasket 120V
Your Rating
Customer Questions
What maintenance is required for the Rheem-Ruud 70-100612-03 Inducer Assembly?

Inspect the inducer assembly regularly for dust buildup, debris, and corrosion. Ensure the motor and fan wheel rotate smoothly without unusual noise or vibration. Check the gasket for proper sealing to prevent exhaust leakage and maintain combustion efficiency. Secure all electrical connections and verify better operation during heating cycles.

What are common issues with the Rheem-Ruud 70-100612-03 Inducer Assembly?

  • Excessive noise or rattling during operation.
  • Motor failure or failure to start.
  • Blocked or restricted venting airflow.
  • Worn or leaking gasket causing pressure loss.
  • Electrical connection faults leading to intermittent operation.

Installation Steps

Step 1: Turn off power and gas supply, confirming the furnace is fully de-energized and safe.

Step 2: Remove the access panel and disconnect wiring, pressure tubing, and mounting screws from the old inducer.

Step 3: Install the new gasket and position the inducer assembly securely on the housing.

Step 4: Reconnect wiring and pressure switch tubing to original ports per diagram.

Step 5: Tighten all fasteners evenly and ensure airtight seal at the mounting surface.

Step 6: Restore power and gas, then test for proper draft, ignition sequence, and safe operation.
