Lennox 27K58 Fan Motor 1-Phase 1/20HP 115V
Special Price $172.29 Regular Price $198.14
In stock
SKU
27K58

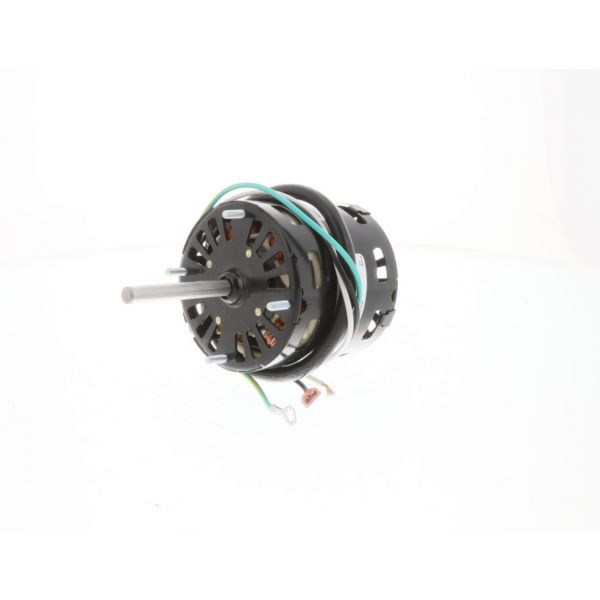

The Lennox 27K58 is a Blower Fan Motor that is single-phase and measures 1/20 HP and is installed in home-use HVAC appliances, such as furnaces and air conditioners. When supplied with energy it develops a revolving magnetic field that causes the rotation of the fan blades in the heating or cooling system to circulate air. The generated magnetic field causes the rotation of a motor shaft which is associated with the fan blades to drive air circulation through a heating or cooling system. Built for horizontal installation with a width of 3.3”, it can easily be installed in HVAC systems. An airflow of 1650 RPM makes the fan ideal for most homes, and its construction is fairly simple.
Manufacturer:
Specifications
- Size
- 3.3 Inch
- Voltage:115V
- Measure: Unit
- Motor Type: Shaded Pole
- Mounting Type: Stud
- AMPerage: 1.7A
- Rotation: CCWLE
- Mounting Position: Horizontal
- RPM (Revolutions Per Minute): 1650
- Horsepower(HP): 1/20 HP
- Frequency: 60Hz
- Weight: 4.06 Lbs
