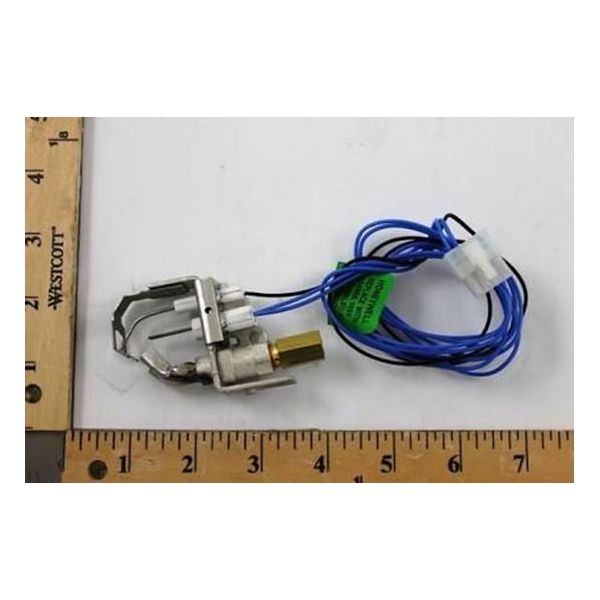

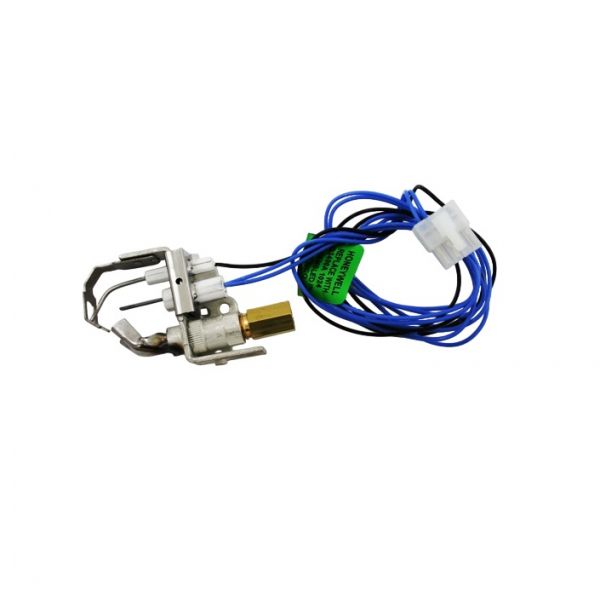

Sterling HVAC 11J38R03421001 Pilot Assembly Q3450C

Be the first to review this product
Special Price $198.55 Regular Price $228.33
In stock
SKU
11J38R03421001

The Sterling HVAC 11J38R03421001 Sterling Pilot Assembly, Q3450C, is a critical component for ensuring dependable ignition in heating, ventilation, and air conditioning systems. This assembly serves as an essential component of the ignition process, igniting the fuel inside the HVAC equipment by supplying a steady flame. This pilot assembly, which is usually integrated into boilers and furnaces, guarantees safe and effective operation, enhancing comfort and performance in both residential and commercial settings. The meticulous design and robust construction provide longevity and dependability while reducing maintenance costs and downtime. The Sterling Pilot Assembly improves the overall efficiency of HVAC systems by continuously providing a stable flame, which encourages energy savings and guarantees a comfortable interior environment for users.

Add to Wish List
Sterling HVAC , Sterling Furnace Parts
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/1/11j38r03421001.jpg
Manufacturer Name: Sterling HVAC
Product Number: 11J38R03421001
OEM Part Number: 11J38R03421001
Product Description: Sterling Pilot Assy,Q3450c
Weight:0.21lbs/95.25g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Sterling HVAC 11J38R03421001 Pilot Assembly Q3450C
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Sterling HVAC 11J38R03421001 Pilot Assembly?

Inspect the pilot assembly for carbon buildup, corrosion, or weak flame formation affecting ignition accuracy. Clean the orifice and surrounding components to maintain steady gas flow. Ensure thermocouple alignment and secure gas connections. Perform routine ignition testing for safe and stable burner operation.

What are common issues with the Sterling HVAC 11J38R03421001 Pilot Assembly?

  • Pilot failure to ignite or remain lit due to weak gas flow.
  • Clogged orifice reducing flame stability and ignition accuracy.
  • Carbon buildup affecting combustion efficiency.
  • Loose connections causing intermittent operation.
  • Weak flame performance under load conditions.

Installation Steps

Step 1: Turn off gas supply and electrical power at breaker and allow unit to cool completely.

Step 2: Remove furnace access panel and set screws aside.

Step 3: Disconnect old pilot assembly wiring and gas connection, noting routing.

Step 4: Position and mount new pilot assembly securely in bracket area.

Step 5: Reconnect gas line and electrical wiring per manufacturer specifications.

Step 6: Ensure alignment, tighten fittings, verify no loose connections.

Step 7: Restore power and gas, test ignition, check for leaks.
