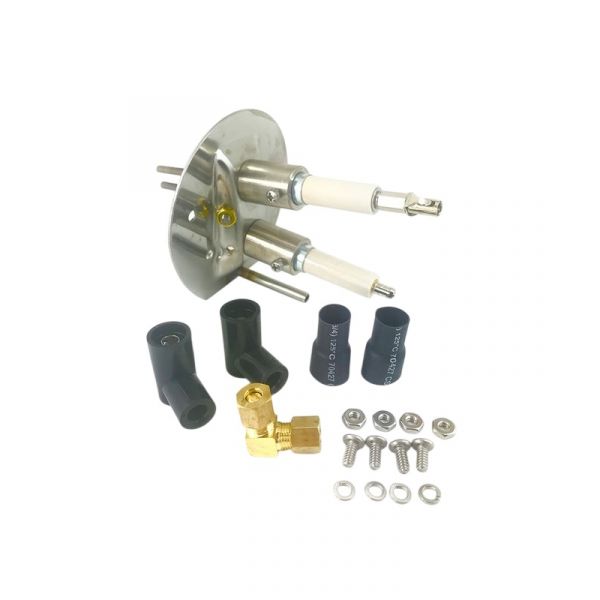

The Midco International 1190100 Pilot with Spark Rod and Flame Rod is an essential component of heating, ventilation, and air conditioning systems, designed to operate safely and efficiently. This gadget serves as an ignition system, supplying a steady spark to ignite the fuel in HVAC units including boilers, furnaces, and water heaters. Incorporating both a spark rod and a flame rod improves the ignition process and guarantees reliable and prompt flame detection for peak efficiency. This pilot device fosters energy efficiency and lowers the possibility of failures or delays in heating initiation by aiding in the igniting process. It provides comfort and dependability to both residential and commercial customers with its exact design and functionality, making it an indispensable part of an HVAC system.
1190100 Pilot W/Spark Rod & Flame Rod is a pilot assembly for gas-powered equipment, specifically designed for use in various boilers and furnaces.Pilot W/Spark Rod & Flame Rod plays a vital role in igniting the main burner flame, ensuring the safe and efficient operation of the heating system. Houses the pilot burner and its components, including the spark rod, flame rod, and ignition connectors.Generates a spark to ignite the pilot gas, initiating the main burner combustion process.Senses the presence of the pilot flame through the flame rod and maintains its stability.Provides a safe and reliable ignition source for the heating system.
Key Features:
Complete assembly: Includes all necessary components for a functional pilot system, eliminating the need for separate parts sourcing.
Durable construction: Made from high-quality materials to withstand the harsh conditions within heating systems.
Easy installation: Designed for straightforward replacement of existing pilot assemblies in various compatible equipment.
Adjustable settings: Allows for fine-tuning of the pilot gas flow and flame for optimal performance.
Compact design: Fits comfortably into designated spaces within boilers and furnaces.
Dimensions of 1190100 Pilot W/Spark Rod & Flame Rod:
Length: 2.5 inches (63.5 mm)
Width: 0.5 inches (12.7 mm)
Height: 0.5 inches (12.7 mm)
Weight: 1.16lbs/526.17g
Signs of a Faulty Pilot W/Spark Rod & Flame Rod Midco 1190100
A malfunctioning 1190100 Pilot W/Spark Rod & Flame Rod assembly can disrupt your heating system's operation and pose potential safety risks. Keep an eye out for these telltale signs:
Ignition Issues:
Frequent ignition failures: The boiler or furnace struggles to light the pilot flame, leaving you with a cold environment.
Yellow or flickering pilot flame: An unstable or discolored pilot flame indicates incomplete combustion, potentially leading to carbon monoxide leaks.
Gas odor: The smell of gas near the heating unit can signify a leak, possibly due to faulty components within the pilot assembly.
System Performance Problems:
Incomplete burner ignition: The main burner fails to ignite properly, even with a seemingly stable pilot flame, leading to inconsistent heating.
Sooting or carbon buildup: Excessive soot or carbon deposits around the pilot burner or within the heating system can indicate incomplete combustion due to a faulty pilot assembly.
Frequent shutdowns or cycling: The heating system shuts down unexpectedly or cycles on and off more frequently than usual, suggesting issues with the pilot flame stability.
Safety Concerns:
Carbon monoxide leaks: A faulty pilot assembly can lead to incomplete combustion and carbon monoxide leaks, posing a serious health hazard.
Gas leaks: Leaks around the pilot assembly can be dangerous and should be addressed immediately.
Unusual noises: Strange sounds like hissing, popping, or banging coming from the pilot burner area could indicate internal issues or gas leaks.
Choose the best HVAC equipment parts and supplies from PartsHnC!
Q: What does the Pilot W/Spark Rod & Flame Rod Midco1190100 assembly do?
A: It ignites the pilot flame in gas-powered boilers and furnaces, initiating the main burner combustion and keeping your heating system running efficiently.
Q: How can I clean and maintain the 1190100 Pilot W/Spark Rod & Flame Rod pilot assembly?
A: Leave such tasks to a qualified HVAC technician during routine maintenance. Never attempt to clean or repair the assembly yourself due to the risk of gas leaks and safety hazards.
Q: How can I prevent problems with the Pilot W/Spark Rod & Flame Rod pilot assembly?
A: Regular inspections and maintenance by a qualified HVAC technician are key. They will clean, adjust, and inspect the assembly to ensure optimal operation and prevent potential issues.
