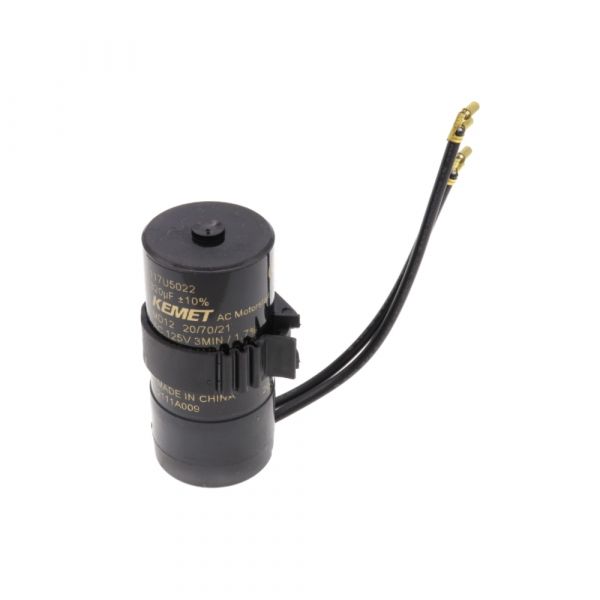

main product photo

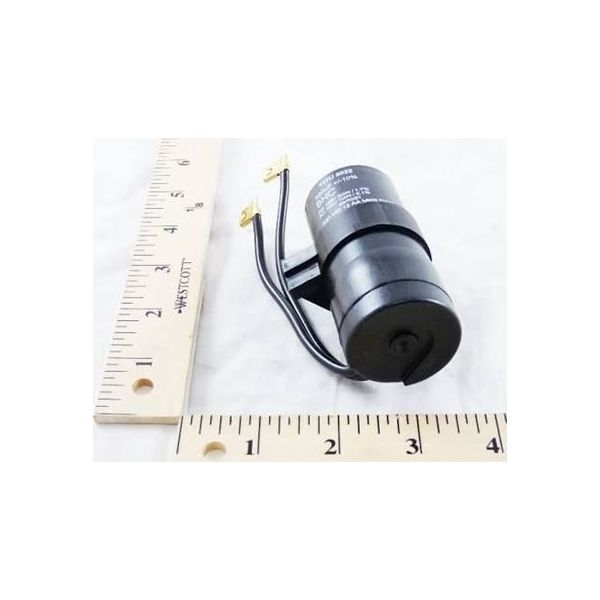

Nidec-Secop 117U5022 Round Start Capacitor W/Bracket 320 MFD 115V

Be the first to review this product
Special Price $30.77 Regular Price $40.00
In stock
SKU
117U5022
The Nidec-Secop 117U5022 Round Start Capacitor With Bracket is an electrical part that is utilized to assist in the starting of the motor in the HVAC systems. It is used to store and discharge a high capacitance charge of 320 MFD at 115V aid in starting torque of a motor. It work by providing a temporary electrical surge at the start of operation and then disconnecting after the process of normal operation has commenced. The component assists in ensuring better motor starting, electrical stress minimization and facilitates the stabilization of system operation.
Add to Wish List
Motors & Capacitors, Capacitors
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/1/117u5022.jpg
Manufacturer Name: Nidec-Secop
Product Number: 117U5022
OEM Part Number: 117U5022
Product Description: Capac 320 Mfd 115V Round W/Bkt
Weight:0.21lbs/95.25g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Nidec-Secop 117U5022 Round Start Capacitor W/Bracket 320 MFD 115V
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Nidec-Secop 117U5022 Capacitor?

Inspect the capacitor regularly for swelling, leakage, or overheating signs. Ensure terminals are tight and free from corrosion or dust buildup. Verify electrical ratings during service checks to maintain stable motor start performance. Proper handling helps ensure accurate compressor operation and electrical safety.

What are common issues with the Nidec-Secop 117U5022 Capacitor?

  • Swelling or bulging due to overheating.
  • Failure to start the motor or the compressor.
  • Loss of capacitance causes weak performance.
  • Electrical leakage or burnt terminals.
  • Intermittent startup issues under load.

Installation Steps

Step 1: Turn off power and disconnect unit completely.

Step 2: Discharge capacitor safely using a resistor tool to avoid shock.

Step 3: Remove old capacitor from bracket carefully.

Step 4: Note wiring positions before removal for correct reconnection.

Step 5: Mount new capacitor in bracket securely and align properly.

Step 6: Reconnect wires to matching terminals as per diagram.

Step 7: Restore power and test operation, checking for smooth startup.
