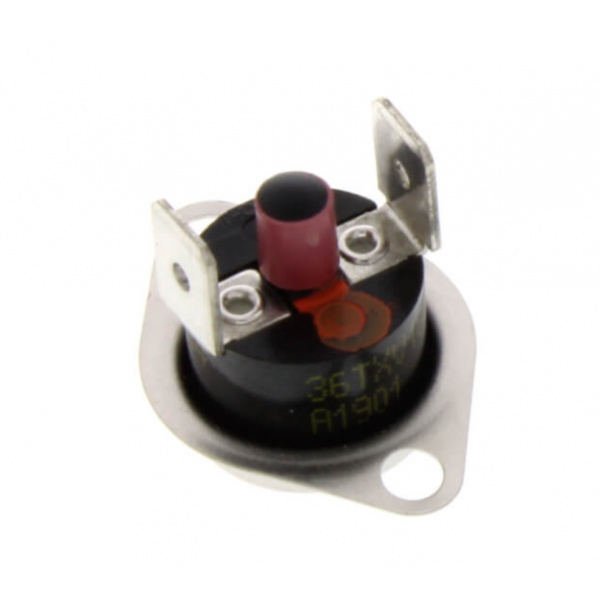

Amana-Goodman 10123534SP M/R Rollout Limit Switch L220F

Rating:
5 5 1
1  Review Add Your Review
Special Price $17.46 Regular Price $22.70
In stock
SKU
10123534SP
The Amana-Goodman 10123534SP Manual Reset Rollout Limit Switch is vital control equipment used to sense excessive heat in the burner or combustion chamber compartment in HVAC heating systems. Its main activity is to break the electrical connection when the temperature is above the 220-degree high temperature, and then the circuit is to be manually reset after the condition has returned to normal. The switch works by use of a temperature-sensitive sensing element that opens the circuit during high heat conditions.
Add to Wish List
HVAC Controls & Electrical, Safety & Limit Devices
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/0/10123534sp_amana-goodman_partshnc.jpg
Manufacturer Name: Amana-Goodman
Product Number: 10123534SP
OEM Part Number: 10123534SP
Product Description: L220f M/R Rollout Switch
Weight:0.01lbs/4.54g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews 1
Write Your Own Review
You're reviewing:Amana-Goodman 10123534SP M/R Rollout Limit Switch L220F
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Amana-Goodman 10123534SP Rollout Switch?

Regularly inspect the rollout switch for signs of wear, corrosion, or soot buildup. Test its operation periodically to ensure it trips correctly under unsafe conditions. Proper care ensures safe furnace operation. Always disconnect power before handling the switch.

What are common issues with the Amana-Goodman 10123534SP Rollout Switch?

  • Switch failing to trip.
  • Intermittent operation or false triggering.
  • Corrosion on terminals.
  • Loose or damaged wiring.
  • Overheating causing malfunction.

Installation Steps

Step 1: Ensure the system is fully powered off before beginning installation.

Step 2: Remove the existing rollout switch and note all wire connections.

Step 3: Install the new rollout switch in the original mounting location.

Step 4: Reconnect all wiring exactly as before, making sure terminals are secure.

Step 5: Secure the switch to prevent movement during operation.

Step 6: Restore power and test the system to confirm proper switch functionality.
