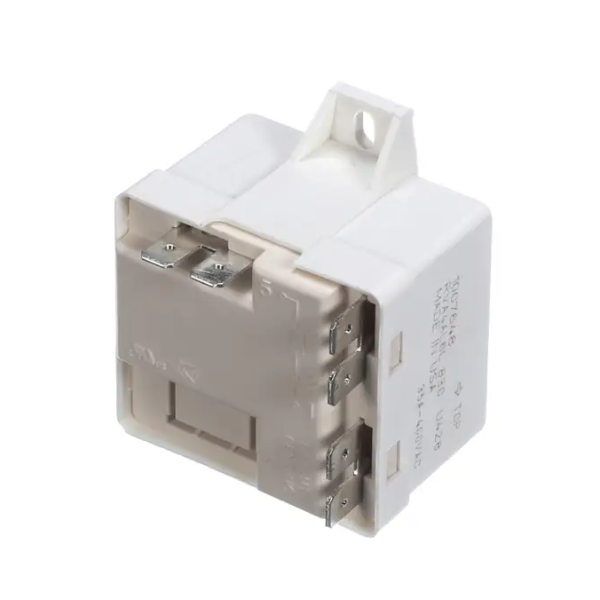

Heatcraft Refrigeration 1007648 Start Relay

Rating:
5 5 1
1  Review Add Your Review
Special Price $182.95 Regular Price $380.95
In stock
SKU
1007648
The Heatcraft Refrigeration 1007648 Start Relay is an essential component, which is intended to energize the work of single-phase electric motors used in HVAC systems. It makes a temporary connection between the start winding of a motor. It has the required torque to start moving, then the motor reaches operating speed, and the temporary connection is disconnected. which reacts to the current flowing and voltage by hooking the terminals in either a control or a compartment. It can be applied in air handling, refrigeration, and cooling components, where demanded as due to dependable performance.
Add to Wish List
HVAC Controls & Electrical, Relays,
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/0/1007648_heatcraft-refrigeration_partshnc.png
Manufacturer Name: Heatcraft Refrigeration
Product Number: 1007648
OEM Part Number: 1007648
Product Description: Relay Start
Weight:0.19lbs/86.18g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews 1
Write Your Own Review
You're reviewing:Heatcraft Refrigeration 1007648 Start Relay
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Heatcraft Refrigeration 1007648 Start Relay?

Regularly inspect the relay for dirt, corrosion, and secure electrical connections. Clean contacts if needed and ensure proper mounting. Proper maintenance ensures reliable compressor starting and prevents system downtime. Always disconnect power before servicing to avoid electrical hazards.

What are common issues with the Heatcraft Refrigeration 1007648 Start Relay?

  • Failure to start the compressor.
  • Intermittent operation or clicking sounds.
  • Burnt or scorched contacts.
  • Loose or corroded wiring connections.
  • Overheating causing relay malfunction.

Installation Steps

Step 1: Turn off and lock out power to prevent electrical hazards.

Step 2: Remove the old start relay and note all wiring connections.

Step 3: Install the new start relay in the compressor or relay housing.

Step 4: Reconnect wiring according to the system diagram, ensuring correct terminal placement.

Step 5: Secure the relay in place to prevent movement.

Step 6: Restore power and test the compressor startup for proper operation.
