Titus HVAC 10051404 2 Volume Motor 77V 1-Phase 1/2Hp 1075 RPM Ccwle

Special Price $538.48 Regular Price $597.71
In stock
SKU
10051404

The Titus HVAC 10051404 is a variable air volume (VAV) motor designed for use in heating, ventilation, and air conditioning (HVAC) systems. It controls the airflow rate within a specific zone by adjusting the damper position. Here's how it works: the motor receives a signal from a VAV controller, which takes into account factors like temperature and occupancy. Based on this signal, the motor opens or closes the damper, allowing more or less conditioned air to flow through. This VAV motor is typically used in terminal units, which are the components responsible for delivering conditioned air to individual spaces within a building. The Titus 10051404 offers several benefits. Firstly, it promotes energy efficiency by precisely controlling the airflow to meet the specific needs of each zone. This reduces unnecessary heating or cooling and lowers energy consumption. Secondly, it enhances occupant comfort by maintaining consistent temperatures throughout the building. Finally, its variable speed operation minimizes noise compared to traditional on/off damper control.
Here are the key specifications of the Titus 10051404 VAV motor:
Voltage/Electrical: 277V (important note: double-check voltage compatibility before installation)
RPM (Revolutions Per Minute): 1075
Horsepower (HP): 1/2
Frequency: 50 Hz
Weight: 16.35lbs

Titus Chilled Beam,
Manufacturer:

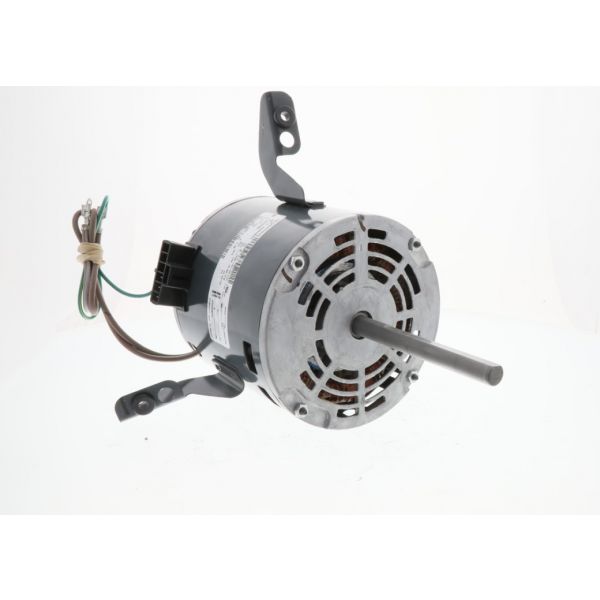

https://www.partshnc.com/media/catalog/product/1/0/10051404_titus-hvac_partshnc_1.jpg

Specifications

  • Voltage/Electrical: 77V
  • RPM (Revolutions Per Minute): 1075 RPM
  • Horsepower(HP): 1/2Hp
  • Frequency:50 Hz
  • Weight: 16.35lbs

Titus HVAC 10051404 Counter-Clockwise Left-Hand motor

The Titus HVAC 10051404 is a 1/2 HP, 277V, Variable Air Volume (VAV) motor. It primarily functions within Titus HVAC systems to control and modulate the airflow within the ductwork, optimizing climate control and system efficiency. Because of its strong performance and wide range of compatibility, it is a well-liked option for many applications. It plays a crucial role in managing airflow by adjusting the speed of the fan based on the building's air demand.

Key features:

1/2 HP, 277V, Variable Air Volume (VAV) Motor:

  • Precise airflow control: Modulates the amount of air flowing through ducts based on system demands and desired temperatures in different zones.
  • Enhanced comfort: reduces drafts and temperature swings, creating a more stable and cozy interior atmosphere.
  • Energy efficiency: VAV operation reduces wasted energy by only delivering the necessary airflow, resulting in lower energy bills.
  • Variable speed operation: Adjusts speed based on system requirements, contributing to quieter operation at lower airflow settings.
  • Durability: Built with high-quality materials and sealed bearings for reliable performance and extended lifespan.
  • Potential additional features: Thermal overload protection, specific mounting options for Titus equipment, and compatibility with building automation systems.

Benefits:

  • Optimizes climate control: Precise airflow control ensures adequate cooling and heating throughout the building.
  • Reduces energy consumption: Energy waste is reduced by VAV operation, which lowers energy bills.
  • Improves comfort: reduces temperature variations and drafts to produce a more steady and comfortable atmosphere.
  • Reduces noise: Variable speed operation can be quieter than constant-speed motors, especially at lower airflow settings.
  • Durable and reliable: Built for long-lasting performance with minimal maintenance requirements.

Compatibility:

  • Designed for specific Titus HVAC models. Always verify compatibility with your exact unit before purchasing.
  • Consult your unit's manual, and online parts lists, or contact Titus technical support for confirmation.

Replacement:

  • Requires professional installation by a qualified HVAC technician due to electrical connections and system knowledge.

Remember:

  • Certain features and specifications may vary depending on the exact model and application.
  • For comprehensive details and troubleshooting advice, consult the technical support or documentation provided by the manufacturer.

Signs of faulty Counter-Clockwise Left-Hand motor 10051404 Titus HVAC:

Temperature and Comfort Issues:

  • Uneven temperatures: Noticeable temperature variations between different rooms or spaces, despite thermostat settings, could indicate the VAV motor not adjusting airflow properly.
  • Drafts or hot spots: Feeling drafts in certain areas or persistent hot spots might suggest uneven airflow distribution due to a faulty VAV motor.
  • Difficulty maintaining desired temperatures: The system struggles to reach or maintain set temperatures, potentially due to the VAV motor not delivering the required airflow.

Airflow and System Performance:

  • Reduced airflow: Overall decrease in airflow throughout the building, possibly indicating the motor isn't functioning at full capacity.
  • Increased noise: Unusual grinding, humming, or loud whirring noises coming from the unit might suggest bearing wear or motor malfunction.
  • Frequent cycling: The HVAC unit turns on and off frequently due to issues with maintaining desired temperatures or pressures, potentially related to the VAV motor.

Electrical and System Malfunctions:

  • Tripped circuit breaker: If the circuit breaker connected to the HVAC unit trips frequently, it could be due to a fault within the VAV motor causing a power overload.
  • Error codes: Some HVAC systems display error codes that might point to specific issues with the VAV motor or its control system. Consult your unit's manual for error code meanings.
  • Complete system shutdown: In severe cases, a faulty VAV motor can lead to the entire HVAC system shutting down to prevent further damage.

Visual and Physical Signs:

  • Vibrations: Excessive vibrations from the unit can be a sign of unbalanced blades or motor problems.
  • Physical damage: Visible damage to the motor housing, fan blades, or wiring could indicate physical impact or internal component failure.
  • Rust or corrosion: Rust or corrosion on the motor housing or components can lead to electrical issues and malfunctions.

Remember:

  • These are just some potential signs, and the specific symptoms may vary depending on the severity of the problem and the Counter-Clockwise Left-Hand motor 10051404 system configuration.
  • If you suspect a faulty VAV motor, stop using the HVAC unit immediately and contact a qualified HVAC technician for diagnosis and repair. Do not attempt to repair the motor yourself unless you have the necessary expertise and qualifications.
  • Ignoring these warnings can lead to further damage to your HVAC system, potential safety hazards, and higher repair costs.
