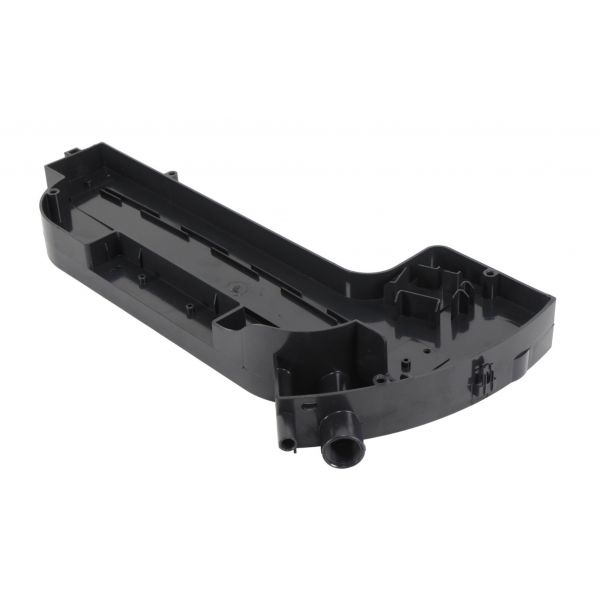

main product photo

Lochinvar & A.O. Smith 100338506 Drain Pan Kit HV50

Rating:
5 5 1
1  Review Add Your Review
Special Price $63.36 Regular Price $72.87
In stock
SKU
100338506
The Lochinvar & A.O. Smith 100338506 Drain Pan Kit is an essential part of several mechanical systems, especially those systems that consist of the HV50. This vital function facilitates the collection and removal of condensation and other fluids produced by the normal functioning of the HVAC equipment. This eliminates damage to the unit and other areas such as water damage on the ceiling and floors, which are made possible by the drain pan kit. This not only safeguards the condition of the equipment but also ensures hygiene and safe in working conditions.
Add to Wish List
Refrigeration & Cooling, Condensate Drain Pans
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/0/100338506.jpg

Specifications

  • Type: Drain Pan Kit
  • Model: HV50
Write Your Own Review
You're reviewing:Lochinvar & A.O. Smith 100338506 Drain Pan Kit HV50
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Lochinvar & A.O. Smith 100338506 Drain Pan Kit?

Regularly inspect the drain pan for standing water, debris, or corrosion, and clean it to prevent clogs. Ensure the drain line flows freely and check for leaks. Proper care helps avoid overflow and moisture damage.

What are common issues with the Lochinvar & A.O. Smith 100338506 Drain Pan Kit?

  • Clogged drain leading to standing water.
  • Corrosion or rust forming on pan.
  • Cracks or damage causing leaks.
  • Improper drainage line slope affecting flow.

Installation Steps

Step 1: Turn off power to the unit and allow it to cool for safety.

Step 2: Remove the existing drain pan if present.

Step 3: Position the new pan under the unit, ensuring proper alignment.

Step 4: Connect the drain line securely to the pan outlet and verify the pan is level and stable.

Step 5: Restore power and test for proper drainage during operation.
