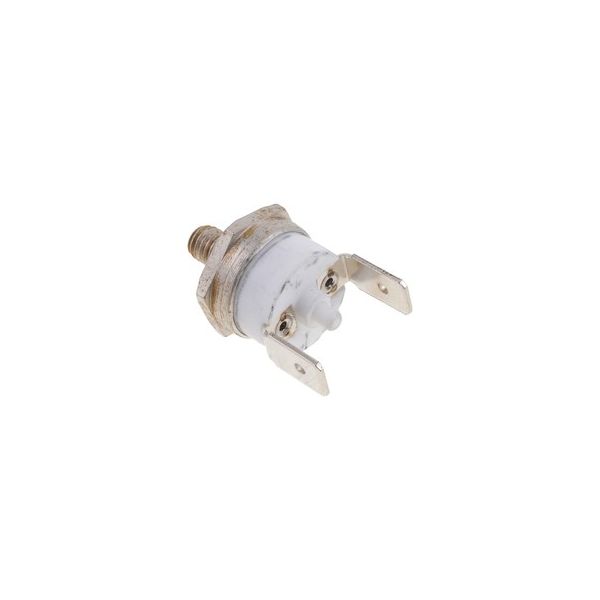

Lochinvar & A.O. Smith 100292715 Heat Exchanger Door Temperature Switch

Rating:
5 5 39
39  Reviews Add Your Review
Special Price $32.54 Regular Price $42.30
In stock
SKU
100292715

The Lochinvar & A.O. Smith 100292715 Hex Door Temperature Switch is an essential component found in a variety of water heating systems from both manufacturers. It serves as a temperature defender by keeping an eye on and controlling the electricity flow inside the device. Consider it as a watchful gatekeeper, making sure the water safely and effectively reaches the right temperature. This switch responds to temperature variations by turning components on or off. Its hexagonal door design makes maintenance and adjustment easier to reach. It is primarily utilized in water heaters, where it guarantees steady hot water supply and enhances system performance. if your hot water does not operate properly, this small switch could hold the key to getting your heating system working again.

Add to Wish List
HVAC Controls & Electrical, Switches,
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/0/100292715.jpg
Monitors the thermal condition at the heat exchanger door and provides a corresponding switching response within the HVAC systems. The Lochinvar & A.O. Smith 100292715 Heat Exchanger Door Temperature Switch responds to temperature changes at the monitored door area and uses the detected condition to change its electrical state. This operation supports thermal monitoring and circuit control within the heat exchanger assembly, where temperature conditions at the door require an electrical response.

Door Temperature:
Tracking at the heat exchanger door provides the switch with a thermal reference from the designated surface. The sensing element tracks changes occurring at that location and passes the corresponding thermal condition into the control arrangement. This section addresses the monitored location and temperature-response input, without covering contact movement or electrical circuit changes.

Thermal Switching:
Within the electrical circuit, the switch changes contact state when the applicable thermal threshold is reached. This transition alters the circuit path and produces the required control response for the associated equipment. The focus here is the contact action and resulting electrical state, separate from the temperature-monitoring process.

Replacement Guidelines:
Replacement requires matching the Lochinvar & A.O. Smith 100292715 Heat Exchanger Door Temperature Switch characteristics, switching arrangement, physical configuration, connection requirements, and heat exchanger specifications. The replacement should also suit the equipment’s control circuit and operating conditions.

Common Failure Symptoms:

  • Inconsistent temperature response.
  • Irregular electrical switching.
  • Intermittent control signals.
  • Unstable switch operation.
  • Delayed circuit response.
  • Inconsistent heat exchanger control.

Equipment Compatibility:
The Lochinvar & A.O. Smith 100292715 Heat Exchanger Door Temperature Switch is intended to integrate with heating equipment using the corresponding heat exchanger door switch arrangement. Verify the equipment model, switch configuration, connection requirements, and manufacturer’s documentation before purchasing.

Technical Specifications:
Brand: Lochinvar & A.O. Smith
Part Number: 100292715
Product Type: Heat Exchanger Door Temperature Switch

Reviews 39
Write Your Own Review
You're reviewing:Lochinvar & A.O. Smith 100292715 Heat Exchanger Door Temperature Switch
Your Rating
Product Questions (10)
Customer Questions
How do I know if my switch needs replacement?

Signs that your switch may need replacement include malfunctioning equipment, inability to turn the system on or off, or issues related to safety features. If you suspect a faulty switch, it's best to have a professional technician inspect and replace it.

Can I replace the switch myself, or do I need a professional technician?

Replacing the switch can be done by individuals with electrical and technical skills, but it is often recommended to have a qualified technician handle the installation. Incorrect installation may lead to safety hazards or equipment damage.

What functions does the Lochinvar & A.O. Smith 100292715 Switch control?

The specific functions controlled by the switch can vary based on the equipment and its model. Typically, it may control power to the unit, safety features, and heating elements, among other functions.

What maintenance is required for the Lochinvar & A.O. Smith 100292715 Temperature Switch?

Inspect the temperature switch regularly to ensure proper mounting and secure electrical connections. Check for corrosion, loose wiring, or heat damage that could affect accurate temperature sensing. Replace the switch if it fails to trigger properly and always disconnect power before servicing for safety.

What are common issues with the Lochinvar & A.O. Smith 100292715 Temperature Switch?

  • Inaccurate temperature readings.
  • Loose or corroded electrical connections.
  • Intermittent switching or failure to activate.
  • Mechanical wear or damage to the switch housing.

What is the 100292715 Heat Exchanger Door Temperature Switch used for?

It is used where temperature-based electrical switching is required at a heat exchanger door within heating equipment.

How does a heat exchanger door temperature switch respond to changing heat conditions?

As temperature changes at the sensing location, the switch responds at its operating point by changing its electrical contact state.

How does the switch communicate a detected thermal condition to the control circuit?

The switch provides an electrical response to the associated control circuit, allowing the heating equipment to react to the detected thermal condition.

What role does the sensing element play in temperature-switch operation?

The sensing element detects temperature changes at the monitored location and transfers that thermal condition to the switching mechanism.

How can I confirm the 100292715 Temperature Switch before purchasing?

Match the part number 100292715 and Heat Exchanger Door Temperature Switch designation with the existing component and applicable heating equipment information.

Installation Steps

Step1: Turn off the electrical power to the unit at the breaker and shut off the gas supply.

Step2: Allow the heat exchanger to cool completely before servicing.

Step3: Remove the access panel and disconnect the wires from the old temperature switch.

Step4: Unscrew and remove the faulty switch from the heat exchanger door.

Step5: Install the new switch in the same position and secure it firmly.

Step6: Reconnect the wiring to the correct terminals, restore power and gas, and test for safe operation.
