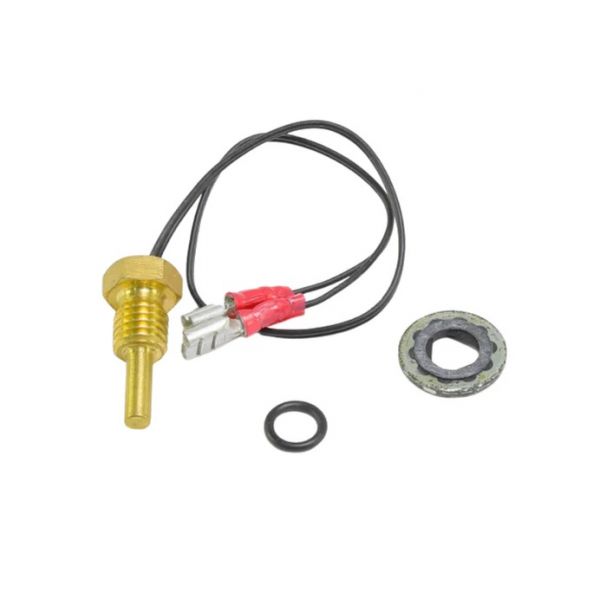

main product photo

Lochinvar & A.O. Smith 100291049 Temperature Sensor Assembly 2-4CH SA-10K

Be the first to review this product
Special Price $38.35 Regular Price $49.85
In stock
SKU
100291049
The Lochinvar & A.O. Smith 100291049 Temperature Sensor Assembly is a sensing part that is found in HVAC systems to measure the temperature of the fluid and feed the system control circuit. It is placed in the selected sensing port or water pathway, and it measures the temperature variation by the use of a thermistor element which varies the electrical resistance depending on the amount of heat, and works using SA-10K thermistor properties with a resistance of about 10K ohms per 2-channel to 4-channel control setup.
Add to Wish List
Temperature Sensors, HVAC Controls & Electrical
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/0/100291049.jpg
Manufacturer Name: Lochinvar & A.O. Smith
Product Number: 100291049
OEM Part Number: 100291049
Product Description: Temp Sensor Assy 2-4Ch Sa-10K
Weight:0.04lbs/18.14g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Lochinvar & A.O. Smith 100291049 Temperature Sensor Assembly 2-4CH SA-10K
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Lochinvar & A.O. Smith 100291049 Temperature Sensor Assembly?

Inspect sensor wiring and connections regularly for corrosion or looseness. Clean the probe gently to prevent debris buildup affecting readings. Ensure proper calibration during service to maintain accurate temperature measurement and safe boiler or HVAC operation.

What are common issues with the Lochinvar & A.O. Smith 100291049 Temperature Sensor Assembly?

  • Faulty readings due to sensor drift.
  • Loose wiring or poor connections.
  • Corrosion on probe or terminals.
  • Intermittent signal loss or communication errors.
  • Inaccurate temperature output under load conditions.
  • Sensor failure from moisture ingress.

Installation Steps

Step 1: Turn off power to the boiler or water heater and allow the system to cool fully.

Step 2: Remove old sensor temperature sensor assembly.

Step 3: Disconnect wiring harness carefully, noting terminal positions for correct reconnection.

Step 4: Install the new assembly into the same mounting location securely.

Step 5: Reconnect wiring firmly and ensure proper seating of all connectors.

Step 6: Restore power and run system test, checking accurate temperature readings and stable operation.
