Special Price $52.68 Regular Price $60.58
In stock
SKU
100112849

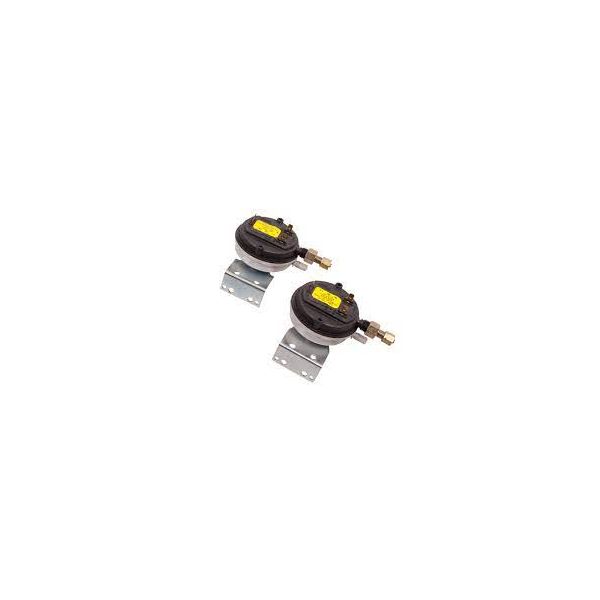

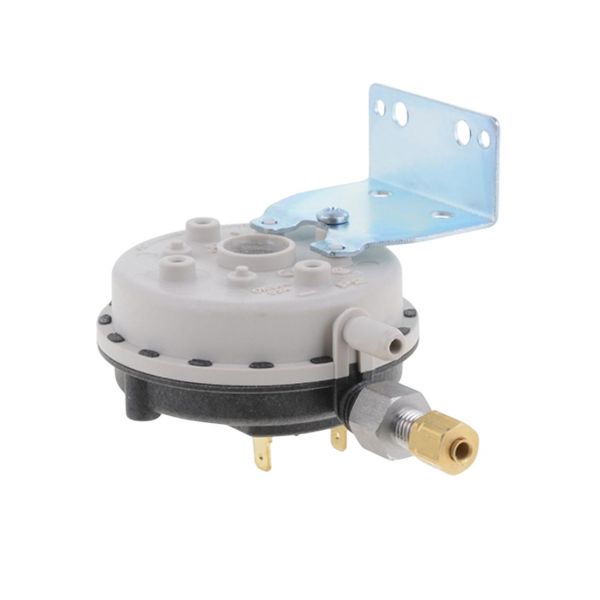

The Lochinvar & A.O. Smith 100112849 Air Pressure Switch monitors differential static pressure across draft inducer assemblies to confirm proper flue venting before burner ignition. Internal sensing diaphragms detect required pressure thresholds created by draft fans and close safety circuit contacts to signal heating controllers. Mounted within combustion air channels to protect gas-fired appliances in HVAC systems, the switch works as an essential safety interlock during startup sequences. Verifying correct exhaust movement prevents unburned gas accumulation, blocks operation during flue blockages, and supports safe burner ignition procedures.
Manufacturer:
| Manufacturer Name: Lochinvar & A.O. Smith Product Number: 100112849 OEM Part Number: 100112849 Product Description: Air Pressure Switch Weight:0.19lbs/86.18g |
Choose the best HVAC equipment parts and supplies from PartsHnC!
Same Day Shipping
Best Quality And Best Price
Wide Range of Inventory
Best Customer Service
Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]
Write Your Own Review
Customer Questions
Installation Steps
Step 1: Disconnect power, lockout/tagout, check no voltage.
Step 2: Remove the old switch access panel and note tubing/wiring positions.
Step 3: Install new switch, mount securely, ensure correct orientation.
Step 4: Reconnect pressure tubing, ensure no leaks or blockages.
Step 5: Wire terminals per schematic and tighten connections.
Step 6: Restore power and test safety shutdown and blower operation.
