Lochinvar & A.O. Smith 100111120 0.80" Air Pressure Switch

Special Price $69.77 Regular Price $80.24
In stock
SKU
100111120

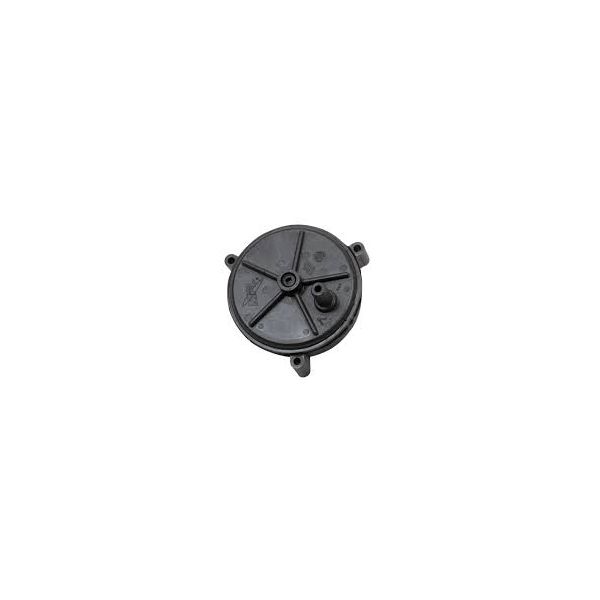

The Lochinvar & A.O. Smith 100111120 Air Pressure Switch is a safety component in HVAC systems, especially in gas-fired water heaters and boilers. It regulates the internal air pressure of the combustion chamber so as to serve as a safety measure. When the pressure drops down to a certain level, the switch pulls out the ignition system, and this may cause danger of producing some gases that can explode or the causes incomplete combustion. This makes safety and operational efficiency possible and makes it easier to achieve reliable operation of heating equipment. It is made for its durability and sensitivity to switch and also for the stability of HVAC systems.
https://www.partshnc.com/media/catalog/product/1/0/100111120_lochinvar--a.o.-smith_partshnc.jpg

Specifications

  • Type: Air Pressure Switch
  • Size: 0.80"
Manufacturer Name: Lochinvar & A.O. Smith
Product Number: 100111120
OEM Part Number: 100111120
Product Description: .80" Air Pressure Switch
Weight:0.15lbs/68.04g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Write Your Own Review
You're reviewing:Lochinvar & A.O. Smith 100111120 0.80" Air Pressure Switch
Your Rating
Customer Questions
What maintenance is required for the Lochinvar & A.O. Smith 100111120 Air Pressure Switch?

Inspect the air pressure switch regularly for dust buildup, corrosion, or loose electrical connections. Ensure tubing is clear of blockages and properly seated to maintain accurate pressure sensing. Check wiring integrity to prevent intermittent faults or false readings. Periodic testing ensures safe and accurate boiler or system operation.

What are common issues with the Lochinvar & A.O. Smith 100111120 Air Pressure Switch?

  • Blocked or cracked sensing tubing causing incorrect pressure readings.
  • Electrical contact failure or intermittent switching.
  • False triggering due to moisture or debris inside housing.
  • Diaphragm wear leading to inconsistent operation or system lockouts.

Installation Steps

Step 1: Turn off power and gas supply; allow the unit to cool completely.

Step 2: Locate the air pressure switch near the inducer or blower assembly.

Step 3: Disconnect wiring and tubing, noting their positions.

Step 4: Remove the old switch from its mounting bracket.

Step 5: Install the new switch, reconnect tubing and wiring securely.

Step 6: Restore power and gas, then test for proper operation and safe ignition.
