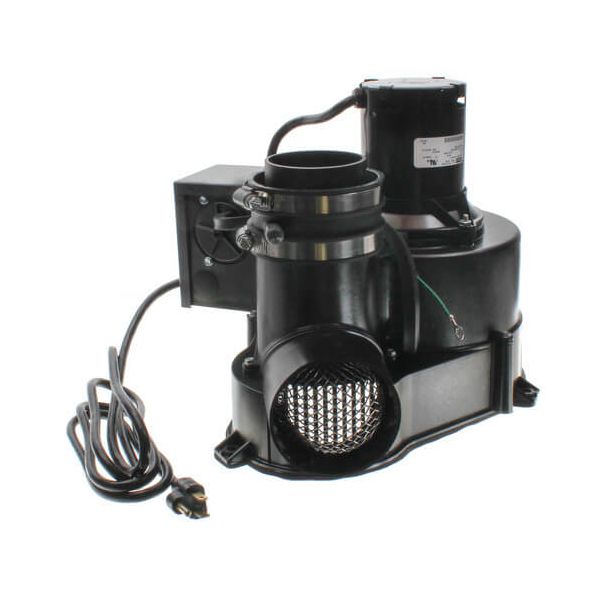

Lochinvar & A.O. Smith 100109785 Blower & Motor Outline Boxed

Be the first to review this product
Special Price $707.55 Regular Price $785.38
In stock
SKU
100109785
Lochinvar & A.O. Smith 100109785 is a Blower & Motor Outline Boxed which is a high-performance blower assembly designed specifically for use with some of the Lochinvar and A.O. Smith water heaters and boilers. It controls the combustion by regulating the air flow hence ensure good gas combustion and heat producing. This blower motor ensures durability of the system, improvement of efficiency, reduction in energy consumption and durability of equipment. Suitably applied for HVAC systems that require steady air flow, it enhances heating efficiency with low operational sound.
Add to Wish List
Blower Motors, Motors & Capacitors
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/0/100109785_lochinvar--a.o.-smith_partshnc.png

Specifications

  • Type: Blower & Motor Outline Boxed
    Manufacturer Name: Lochinvar & A.O. Smith
    Product Number: 100109785
    OEM Part Number: 100109785
    Product Description: Blower And Motor Outline Boxed
    Weight:10.06lbs/4563.14g

    Choose the best HVAC equipment parts and supplies from PartsHnC!

    • Same Day Shipping

    • Best Quality And Best Price

    • Wide Range of Inventory

    • Best Customer Service

    Have More Questions or Need Help to Place The Order?
    Reach us at (866)773-0907 or [email protected]

    Reviews
    Write Your Own Review
    You're reviewing:Lochinvar & A.O. Smith 100109785 Blower & Motor Outline Boxed
    Your Rating
    Product Questions (2)
    Customer Questions
    What maintenance is required for the Lochinvar & A.O. Smith 100109785 Blower And Motor?

    Regularly inspect the blower and motor for dust buildup, debris, or obstructions that may affect airflow. Ensure electrical connections are secure and check for unusual noises or vibrations. Clean components as needed and verify proper ventilation to prevent overheating. Always disconnect power before servicing.

    What are common issues with the Lochinvar & A.O. Smith 100109785 Blower And Motor?

    • Motor not starting or intermittent operation.
    • Unusual noise or vibration during use.
    • Reduced airflow or weak performance.
    • Overheating or thermal shutdown.
    • Electrical connection faults or short circuits.

    Installation Steps

    Step 1: Turn off electrical power and gas supply to the unit before servicing.

    Step 2: Remove the access panel and disconnect the wiring harness and vent connections from the existing blower assembly.

    Step 3: Remove mounting hardware and carefully take out the old blower and motor unit.

    Step 4: Position the blower and motor assembly, secure it with the original hardware, and reconnect all wiring and vent connections.

    Step 5: Verify all seals and gaskets are properly seated to prevent air leaks.

    Step 6: Restore power and gas, then test operation and confirm proper airflow and combustion performance.
