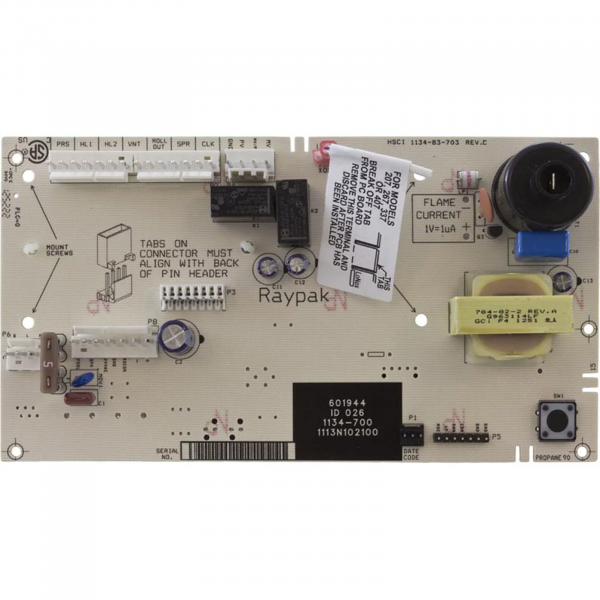

Raypak 100-10000345 Control-Board is a necessary part electronic component of spa heaters that ensures the exact temperature regulation and system diagnostics. Its heater processes the inputs from various sensors to control ignition, gas flow as well as safety operates to optimize performance and efficiency. It is designed specifically for digital gas pool heaters for reliability and ease of use. Advantages of reduced heating accuracy, better energy efficiency, and additional safety features to prevent system failures are provided. It also simplifies the troubleshooting with the error code display and lessens the maintenance time.
The Raypak 100-10000345 is a pool and spa heater PC board controller. It is an original and authentic replacement part that is compatible with a variety of Raypak pool and spa heaters. This particular model is used on models produced between November 2003 and October 2004, including the 185B, 265B, 335B, and 405B heaters. It is also compatible with models produced from November 2004 to the present, including the 206A, 266A, 336A, and 406A heaters; as well as the 207A, 267A, 337A, and 407A heaters.
Key Features:
Function:
Controls all aspects of the heater: Monitors temperature, regulates gas flow, manages pump operation, and controls other vital functions.
Provides user interface: Allows you to set desired temperature, adjust settings, and monitor heater performance through a user-friendly interface.
Safety features: Equipped with safety mechanisms to prevent overheating, malfunction, and potential hazards like gas leaks.
Features:
Compatible with multiple Raypak models: Versatile pool and spa heater that is compatible with a broad variety of Raypak models.
Easy installation: Designed for straightforward replacement by qualified technicians, often requiring minimal configuration.
Durable construction: Built with high-quality components for reliable performance and long lifespan.
Advanced technology: Employs advanced microcontrollers and sensors for precise control and efficient operation.
Compact design: Fits comfortably within most Raypak heater compartments.
Benefits:
Precise temperature control: Maintains consistent and comfortable water temperature for optimal pool or spa enjoyment.
Enhanced efficiency: Optimizes gas usage and fuel consumption for cost-effective heating.
Improved safety: Ensures safe operation through built-in safety features.
User-friendly interface: Allows for easy heater monitoring and management.
Durable and reliable: Long-lasting performance for consistent pool or spa heating comfort.
Important Notes:
This part is intended for replacement purposes in compatible Raypak pool and spa heaters. Always consult the user manual and confirm compatibility before purchasing.
To ensure appropriate performance and safety, installation should be done by a skilled pool and spa technician.
Additional Information:
Raypak offers a wide range of replacement parts and technical support for their pool and spa heaters.
You can find the 100-10000345 and other Raypak parts at authorized distributors, online retailers, or the Raypak website.
Signs of a Faulty Raypak 100-10000345 Control Board:
Heating Performance Issues:
Inconsistent water temperature: The water doesn't reach the desired temperature or fluctuates significantly, suggesting malfunctioning control of heating elements or pump operation.
Heater doesn't turn on or off properly: The heater may not turn on when set to heat, or it may not shut off when the desired temperature is reached.
Uneven heating: Some areas of the pool or spa might be warmer than others, indicating potential issues with flow control or sensor malfunction.
Operational Problems:
Error codes or messages: The control panel displays error codes or messages indicating specific issues with the board or connected components.
Unusual noises: Strange clicking, buzzing, or humming sounds coming from the control box can signify internal component issues.
Display malfunction: The user interface might be unresponsive, show distorted information, or flicker intermittently.
Safety Concerns:
Overheating: The heater runs continuously or exhibits signs of overheating, potentially due to malfunctioning temperature sensors or control circuits.
Gas leaks: A persistent gas odor around the heater can indicate a malfunction related to gas valve control.
Electrical issues: Sparks, flickering lights, or burning smells near the control box suggest potential electrical problems.
Additional Warning Signs:
Increased energy consumption: Higher than usual fuel bills might point towards inefficient operation due to control board malfunction.
Frequent cycling: Possibly as a result of control or sensor faults, the heater is turning on and off more frequently than usual.
Physical damage: Visible damage to the control box, connectors, or internal components.
Remember:
If you suspect any of these signs, do not attempt to diagnose or repair the 100-10000345 Control Board Raypak yourself. Contact a qualified pool and spa technician immediately for inspection and potential repair.
Always prioritize safety when dealing with pool and spa equipment, especially if you suspect electrical or gas issues. Shut off the power and gas supply if necessary.
Consult the user manual or installation guide for specific troubleshooting steps and potential error code explanations related to the PCB control board.
