The Conbraco Industries 10-616-10 Safety Relief Valve is meant to relieve pressure build up in HVAC systems and guarantee that the equipment is safe to use. This valve has a thermal rating of 39,69,000 BTU and is designed to work at a pressure of 50 PSI, thereby protecting the equipment from high pressure damage. Made of bronze material, it is suitable for high-temperature application up to 250°F and has a connection size of 1.25” x 1.5” FEM NPT. The type of safety relief valve is vital for boilers, refrigeration systems, and several industrial applications.

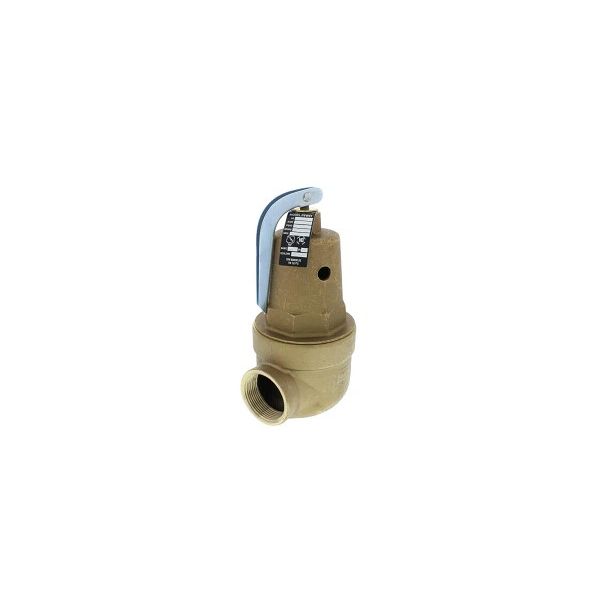

Conbraco Industries 10-616-10 Hot Water Relief Valve
The Conbraco Industries 10-616-10 is a high-capacity hot water relief valve used in residential and commercial hot water heating systems. It protects boilers, tanks, and other equipment from damage caused by excessive pressure and overheating. The Conbraco 10-616-10 is a safety relief valve designed to protect hot water heating systems from excessive pressure build-up. It features a robust bronze construction, high capacity, and reliable performance, making it suitable for various residential and commercial applications. This is a pressure relief valve only and is not intended to regulate system pressure.
Key features:
Function:
Protects hot water systems from overpressure and overheating damage, preventing boiler explosions and equipment failures.
Technical Specifications:
High-capacity relief: 3,969,000 BTU - suitable for large or high-demand systems.
Adjustable set pressure: 15-160 psig (1-11 bar) - adapts to specific system needs.
Durable construction: Bronze body for corrosion resistance and longevity.
Diaphragm-protected spring: Extends service life and ensures consistent operation.
Oversized outlet: Enables efficient pressure release and improved flow.
Elevated seat design: Prevents build-up and sticking for reliable operation.
ASME Section IV certified: Guarantees quality, capacity, and performance.
Made in USA: Backed by American manufacturing standards.
Benefits:
Enhanced safety: Protects against pressure buildup and potential explosions.
Extended equipment lifespan: Prevents overheating and stress-related damage.
Energy efficiency: Maintains optimal pressure for efficient system operation.
Peace of mind: Offers dependable protection for your hot water system.
Applications:
Boilers for heating water with hot water
Hot water systems for homes and businesses
Systems that use solar heat
Hot water storage tanks and cylinders
Remember:
Consult installation instructions and local plumbing codes before installation.
Signs of faulty Hot Water Relief Valve10-616-10 Conbraco Industries:
Leaks:
Dripping or continuous water leakage from the valve outlet: This can indicate worn-out seals, a damaged diaphragm, improper valve seating, or loose connections.
Steam or hot water spraying from the valve: This points to a serious malfunctioning valve that is not relieving pressure properly and needs immediate attention.
Pressure Issues:
Repeated popping or hissing sounds from the valve: Occasional popping is normal as the valve releases excess pressure. Frequent popping could indicate a stuck open disc, malfunctioning spring, or excessive water pressure in the system.
High water pressure gauge readings or boiler malfunctions: If the boiler pressure builds up excessively, it could suggest the valve is not releasing pressure adequately.
Visual and Physical Signs:
Corrosion or visible damage on the valve body or internal components: Corrosion can compromise the valve's integrity and lead to leaks or performance issues.
Loose or wobbly connection to the pipe or boiler: This suggests improper installation or wear and tear that could affect the valve's sealing and operation.
Additional Clues:
Reduced hot water flow or inconsistent temperature: This could be due to the valve releasing excessive amounts of water, even when pressure is within normal range.
Increased energy consumption: The boiler might be working harder to maintain pressure against a malfunctioning relief valve, leading to higher energy bills.
Remember:
If you suspect any of these signs, immediately shut off the Hot Water Relief Valve 10-616-10 supply and boiler, and contact a qualified plumber or heating technician for diagnosis and repair. Should you not be qualified and possess the necessary experience, you should not attempt to fix the valve yourself.
Serious repercussions, including property damage, boiler explosions, and possible safety risks, may result from ignoring these warning indicators.
