The Conbraco Industries 10-616-05 Safety Relief Valve is a safety component that is installed to prevent overpressure conditions in HVAC systems. The capacity of this valve is 27,160,000 BTU while the pressure rating is 30 PSI and the connection size is 1.25” X 1.5” FEM NPT and is made of bronze. The mechanism works by opening naturally to let out more pressure reducing the likelihood of damaging equipment like boilers and compressors. The advantages of this kind of safety relief valve are improved safety, longer equipment durability, and minimal chances of failure.

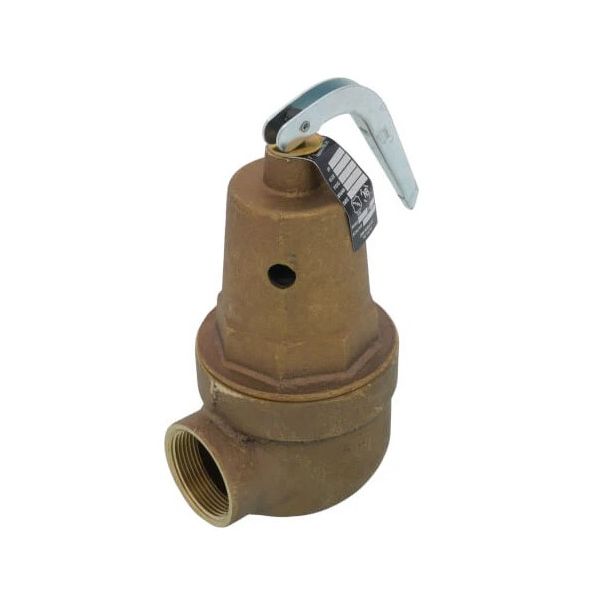

Conbraco Industries 10-616-05 Hot Water Relief Valve
The Conbraco Industries 10-616-05 is a high-capacity bronze hot water relief valve. It protects hot water heating boilers, systems, and similar equipment from damage by automatically releasing excess pressure and preventing overheating. It is a well-liked option for both home and business settings because of its sturdy build and dependable operation. It is designed to endure harsh environments and guarantee dependable operation in both home and business settings. This is a pressure relief valve only and is not intended to regulate system pressure.
Key features:
Function:
Protects hot water systems: Automatically releases excess pressure and prevents overheating in boilers, tanks, and other equipment.
Technical Specifications:
High capacity: Handles up to 3,030,000 BTU, suitable for large systems or high-demand applications.
Adjustable set pressure: Range from 15 to 160 psig (1 to 11 bar) allows customization to specific system needs.
Durable construction: Bronze body resists corrosion and ensures long-lasting performance.
Diaphragm protection: Spring mechanism isolated from water contact for consistent operation and minimized corrosion.
Efficient release: Oversized outlet ensures smooth and rapid pressure relief.
Compact design: Fits easily into tight spaces near equipment.
ASME Section IV certified: Meets strict safety standards for capacity and performance.
Made in the USA: Dependability and excellent construction quality.
Benefits:
Enhanced safety: Prevents boiler explosions and system damage caused by overpressure.
Extended lifespan: Protects equipment from overheating and stress, leading to longer life.
Energy efficiency: Maintains optimal system pressure for efficient operation and avoids wasted energy.
Peace of mind: Offers dependable protection and reliability for your hot water system.
Applications:
Boilers for heating water with hot water
Hot water systems for homes and businesses
Systems that use solar heat
Hot water storage tanks and cylinders
Remember:
Consult installation instructions and local plumbing codes before installing.
Signs of faulty Hot Water Relief Valve 10-616-05 Conbraco Industries:
Leaks:
Dripping or continuous water leakage from the valve outlet: This can indicate worn-out seals, a damaged diaphragm, or improper valve seating.
Steam or hot water spraying from the valve: This points to a serious malfunctioning valve that is not relieving pressure properly and needs immediate attention.
Pressure Issues:
Repeated popping or hissing sounds from the valve: This suggests the valve is releasing pressure too frequently, potentially due to a stuck open disc or malfunctioning spring mechanism.
High water pressure gauge readings or boiler malfunctions: If the boiler pressure builds up excessively, it could indicate the valve is not releasing pressure adequately.
Visual and Physical Signs:
Corrosion or visible damage on the valve body or internal components: Corrosion can compromise the valve's integrity and lead to leaks or performance issues.
Loose or wobbly connection to the pipe or boiler: This suggests improper installation or wear and tear that could affect the valve's sealing and operation.
Additional Clues:
Reduced hot water flow or inconsistent temperature: This could be due to the valve releasing excessive amounts of water, even when pressure is within normal range.
Increased energy consumption: The boiler might be working harder to maintain pressure against a malfunctioning relief valve, leading to higher energy bills.
Remember:
If you suspect any of these signs, immediately shut off the Hot Water Relief Valve 10-616-05 supply and boiler, and contact a qualified plumber or heating technician for diagnosis and repair. Should you not be qualified and possess the necessary experience, you should not attempt to fix the valve yourself.
Serious repercussions, including property damage, boiler explosions, and possible safety risks, may result from ignoring these warning indicators.
