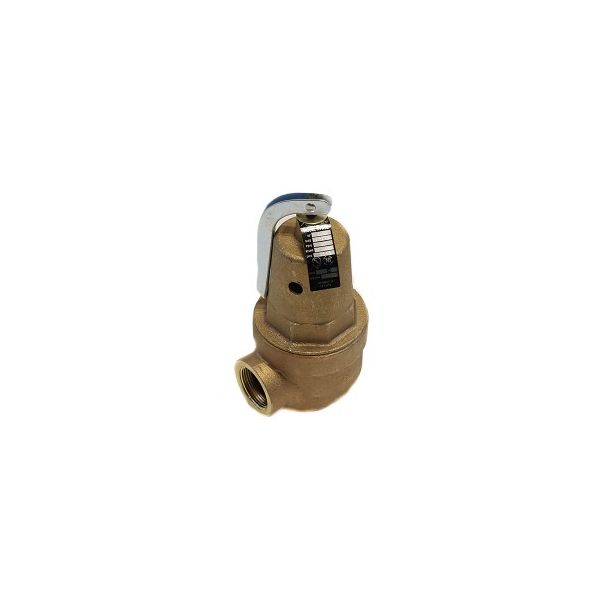

The Conbraco Industries 10-606-05 Safety Relief Valve is an essential safety part that is used to prevent HVAC systems from overpressure conditions. With a capacity of 23,160,000 BTU, this valve bears a pressure rating of 30 PSI to guarantee that a buildup in pressure does not lead to equipment blowup in such appliances as boilers and refrigeration plants. It has a 1.25” X 1.25” FEM NPT connection size and works well under a temperature of 250°F. This valve is effective in increasing efficiency during use to improve safety and reduce risk of leakages and explosions.
A 1-1/4" ASME Section IV approved hot water relief valve, the Conbraco 10-606-05 is made to guard against overpressure in hot water heating boilers, systems, and related equipment. High-quality, 1-1/4-inch brass, spring-loaded pressure relief valve Conbraco 10-606-05 shields boilers, hot water heating systems, and related equipment from the risks of overheating and overpressure. It provides dependable performance and long-lasting protection for both residential and commercial applications because of its ASME certification and sturdy construction. A premium 1-1/4-inch bronze safety relief valve, the Conbraco 10-606-05 is made to guard against overpressure and possible damage to boilers, hot water heating systems, and related equipment. It is a well-liked option for both residential and commercial applications because of its ASME certification, sturdy construction, and dependable performance.
Key features:
Safety: Protects boilers and hot water systems from overpressure and potential explosions through automatic pressure release.
Precise Control: Adjustable pressure setting from 15 to 160 psig at 250°F for optimal protection customized to your system's needs.
High Capacity: Handles significant hot water pressure build-up with a flow capacity of 2,316,000 BTU, ideal for various system sizes.
Leak-proof Construction: One-piece bronze body, stainless steel spring, and Buna-N O-rings ensure reliable sealing and prevent leaks, minimizing maintenance and potential water damage.
Compact Design: Fits easily in tight spaces, simplifying installation and reducing clutter.
Durable Materials: Corrosion-resistant bronze body and stainless steel spring ensure long-lasting performance even in harsh environments.
Certified Safety: Meets ASME Section IV and National Board standards for hot water service, guaranteeing quality and adherence to strict safety regulations.
Versatile Applications: Suitable for residential and commercial hot water heating systems, boilers, tanks, and closed loops, offering broad applicability.
Peace of Mind: Backed by a 1-year warranty for added assurance on its quality and performance.
Benefits:
Enhanced Safety: Protects valuable equipment and personnel from overpressure situations, preventing potential damage and ruptures.
Reliable Performance: Delivers consistent and accurate pressure relief at the designated setting, ensuring system integrity.
Durable Construction: High-grade components and characteristics that prevent corrosion give it a long lifespan.
High Capacity: Handles large volumes of hot water flow effectively, even in high-pressure scenarios.
Easy Installation and Maintenance: Standard connections and accessible features simplify installation and maintenance tasks.
Applications:
Residential and commercial hot water heating boilers
Hydronic heating systems
Solar hot water systems with boilers
Heat pumps with integrated boilers
Industrial hot water equipment operating within the valve's pressure range
Additional Information:
Consult the Conbraco website or a qualified HVAC technician for specific sizing and installation requirements for your application.
This is a pressure relief valve only and not intended to regulate system pressure.
For information on correct installation, use, and maintenance, consult the manufacturer's instructions.
Always choose the valve with the pressure setting that matches your specific system's maximum allowable pressure.
Signs of faulty 1.25"x1.25" 30 2,316,000btu 10-606-05 Conbraco Industries:
Leaks:
Visible leaks around the valve body, indicating worn or damaged O-rings, a cracked body, or improper installation.
Constant dripping or spraying of hot water, even when the system pressure is normal, suggesting internal malfunction or improper sealing.
Pressure Related Issues:
Failure to release pressure when the system exceeds the set limit, potentially leading to overpressure and safety risks. This could be due to a stuck valve mechanism, clogged outlet, or incorrect pressure setting.
Hissing or popping sounds coming from the valve, which could indicate improper pressure regulation, internal damage, or a blocked relief passage.
Physical Damage:
Visible signs of corrosion, cracks, or dents on the valve body or spring, compromising its structural integrity and potentially affecting its functionality.
Stuck or seized valve mechanism, preventing the 1.25"x1.25" 30# 2,316,000btu 10-606-05 valve from opening or closing properly, hindering its ability to release pressure when needed.
Operational Issues:
Frequent activation of the relief valve, even under normal system pressure, suggesting potential upstream issues like a faulty thermostat or expansion tank, or internal valve malfunction.
Inability to adjust the pressure setting correctly, indicating a problem with the adjustment mechanism or internal components.
Additional Signs:
Unusual noises or vibrations coming from the valve, suggesting internal wear or damage.
Reduced hot water flow or pressure, potentially caused by a partially blocked valve or internal malfunction.
