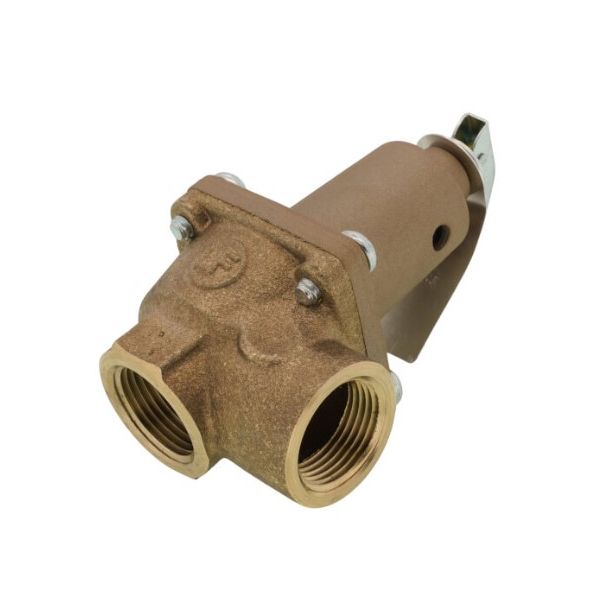

Watts 0369011 Relief Valve 3/4" FPT 125 PSI LF474A

Special Price $178.60 Regular Price $205.40
In stock
SKU
0369011
3/4" Lf474a 125# Relief Valve
https://www.partshnc.com/media/catalog/product/0/3/0369011.jpg

PRODUCT OVERVIEW:
A high-capacity safety discharge device engineered to evacuate excess pressure within pressurized water systems. The Watts 0369011 LF474A Pressure Relief Valve is a genuine OEM lead-free safety component featuring a 3/4-inch female threaded layout and a factory-set 125 PSI rating.

PRESSURE RELIEF & SAFETY FUNCTION:
This emergency device relies on a calibrated internal spring to force a resilient silicone disc down against the valve seat. When internal fluid forces exceed the structural 125 PSI threshold, the spring compresses to lift the seat, establishing a rapid evacuation path to safely exhaust localized water pressure from the protected system.

REPLACEMENT GUIDELINES:
Replace part number 0369011 when the internal spring loses tension, the silicone seat tears, mineral scale binds the mechanism, or the manual test lever breaks. Inspect the valve for corrosion, deterioration, or mechanical damage before replacement. Confirm the correct replacement using the original equipment manufacturer's parts documentation.

COMMON FAILURE SYMPTOMS:

  • Continuous water discharge from the valve.
  • Leakage around the valve connections.
  • Failure to reseat after pressure is relieved.
  • Visible corrosion or physical deterioration.
  • Restricted discharge passage.
  • Damaged test lever or valve components.

EQUIPMENT COMPATIBILITY:
The Watts Pressure Relief Valve compatibility is determined by verifying the equipment's maximum operating pressure limits and the required material compliance standards. Its lead-free construction makes it suitable for matching with domestic water heaters, storage tanks, or closed plumbing loops. Verify the required pressure setting, connection size, discharge arrangement, and equipment capacity against the manufacturer's specifications before installation. Ensure the valve's rated relief capacity meets the requirements of the protected equipment.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Watts
Part Number: 0369011
Model: LF474A
Component Type: Pressure Relief Valve
Physical Specifications:
Inlet Connection: 3/4 Inch FPT
Outlet Connection: 3/4 Inch Female Threaded
Body Material: Lead-Free Copper-Silicon Alloy
Operating Specifications:
Pressure Setting: 125 PSI

Write Your Own Review
You're reviewing:Watts 0369011 Relief Valve 3/4" FPT 125 PSI LF474A
Your Rating
Customer Questions
Can this valve be field-adjusted to relieve at a lower pressure?

No, the 125 PSI pressure setting is permanently factory-calibrated and sealed to prevent unauthorized field modification.

Does this specific valve provide thermal protection if the water overheats?

No, it responds exclusively to mechanical pressure changes and lacks the internal wax-filled thermal stem required for temperature monitoring.

What physical mechanical feature permits manual testing of the valve seat?

A top-mounted steel test lever allows operators to manually lift the spring assembly to check for clear fluid paths.

Why must the downstream discharge piping match or exceed the 3/4-inch outlet size?

Restricting the discharge pipe diameter causes restrictive backpressure that prevents the valve from reaching its full relief capacity during an emergency blowout.

What prevents water from leaking past the stem during an active relief event?

An internal diaphragm and tight tolerances seal the mechanical stem area to isolate the upper spring housing from the path of the discharging fluid.
