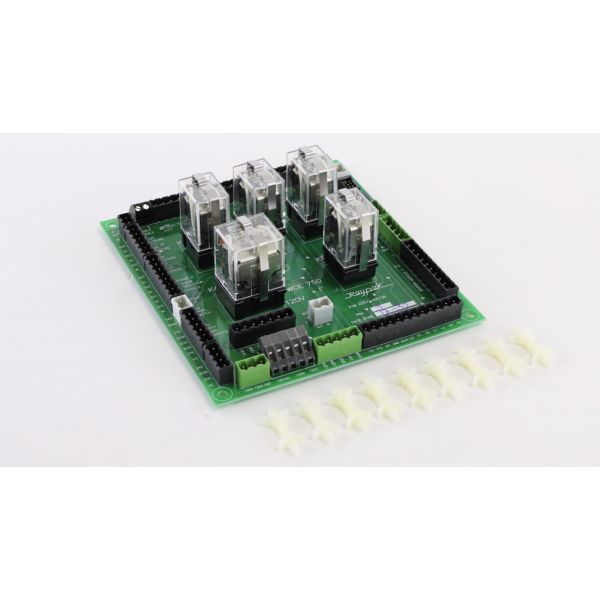

The Raypak 009627F Printed Circuit Board designed for Raypak heating systems, specifically used in pool heaters and boilers. This PCB is an essential part of any electronic system that controls ignition, temperature, and safety of the system. It is widely used in gas heaters such as pool and spa heaters and also in commercial boilers. The advantages of this PCB are better energy management, better temperature control, and protection against overheating or failure of some of the system’s components. The ensures that the systems are run efficiently increasing the equipment’s durability and decreasing the costs of maintenance, which makes it an ideal replacement part for heating systems in HVAC systems.
A printed circuit board (PCB) called Raypak 009627F is made to work with several Raypak pool heater models. It is an essential part that keeps the heater operating at peak efficiency and performance by managing and controlling its functioning. Long-lasting durability is provided by the board's sturdy design, which can handle challenging environmental conditions. In order to facilitate installation and facilitate interaction with other heater system components, it also has several connection points.
Key Features:
Function:
Controls key system functions: Monitors temperature, manages airflow, regulates fuel flow, and oversees other vital operations.
Communicates with other components: Interfaces with sensors, actuators, and other parts of the HVAC system to coordinate operation.
Provides safety features: Equipped with safety mechanisms to prevent overheating, malfunction, and potential hazards like carbon monoxide leaks.
Features:
Compatible with various Raypak models: Works with a wide range of Raypak boilers, furnaces, and other HVAC systems, offering versatility.
Durable construction: Built with high-quality components for long-lasting performance and reliability.
Advanced technology: Employs microcontrollers and sensors for precise control and efficient operation.
Compact design: Fits comfortably within most Raypak HVAC compartments.
Benefits:
Optimal system performance: Ensures efficient heating and cooling operation, maximizing comfort and minimizing energy consumption.
Enhanced safety: Protects against potential hazards and ensures safe operation of the HVAC system.
Reliable operation: Durable construction and advanced technology provide long-lasting performance.
Compatibility: Works with various Raypak models, offering flexibility.
Important Notes:
This part is intended for replacement purposes in compatible Raypak HVAC systems. Always consult the user manual and confirm compatibility before purchasing.
To ensure appropriate performance and safety, installation should be done by a skilled pool and spa technician.
Additional Information:
Raypak offers a wide range of replacement parts and technical support for their HVAC systems.
You can find the 009627F and other Raypak parts at authorized distributors, online retailers, or the Raypak website.
Signs of a Faulty Raypak 009627F Printed Circuit Board:
Heating or Cooling Issues:
Inconsistent temperature: The system doesn't reach the desired temperature or fluctuates significantly, suggesting malfunctioning control of heating or cooling elements.
System doesn't turn on or off properly: The HVAC system may not turn on when set to heat or cool, or it may not shut off when the desired temperature is reached.
Uneven heating or cooling: Some areas of your home might be warmer or cooler than others, indicating potential issues with airflow control or sensor malfunction.
Operational Problems:
Error codes or messages: The control panel displays error codes or messages indicating specific issues with the board or connected components.
Unusual noises: Strange clicking, buzzing, or humming sounds coming from the unit can signify internal component issues within the PCB.
Display malfunction: The control panel might be unresponsive, show distorted information, or flicker intermittently.
Safety Concerns:
Overheating: The system runs continuously or exhibits signs of overheating, potentially due to malfunctioning temperature sensors or control circuits.
Gas leaks (in gas-powered systems): A persistent gas odor around the unit can indicate a malfunction related to gas valve control.
Electrical issues: Sparks, flickering lights, or burning smells near the unit suggest potential electrical problems on the PCB.
Additional Warning Signs:
Increased energy consumption: Higher than usual fuel or electricity bills might point towards inefficient operation due to the faulty PCB.
Frequent cycling: Possibly as a result of control or sensor faults, the system is turning on and off more frequently than usual.
Physical damage: Visible damage to the control board, connectors, or internal components.
Remember:
If you suspect any of these signs, do not attempt to diagnose or repair the 009627F Printed Circuit Board Raypak yourself. Make quick contact with a licensed HVAC professional for an examination and possible repair.
Always prioritize safety when dealing with HVAC systems, especially if you suspect electrical or gas issues. Shut off the power and gas supply if necessary.
Consult the user manual or installation guide for specific troubleshooting steps and potential error code explanations related to the PCB.
