Raypak 007147F Printedcircuitboard U2

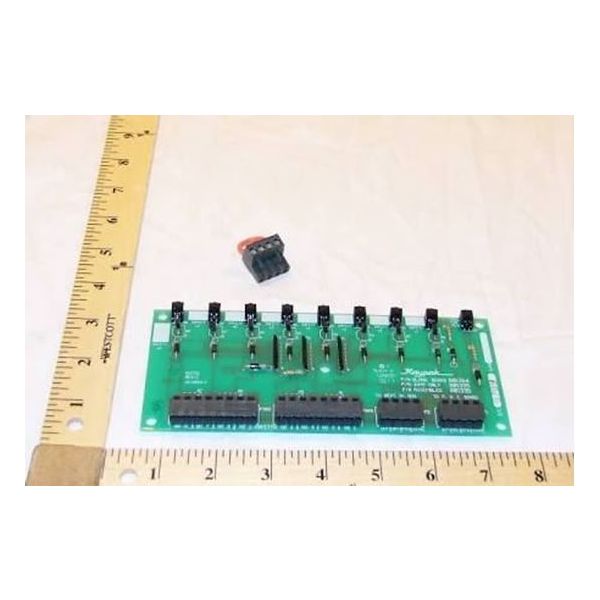

The Raypak 007147F is a printed circuit board (PCB) developed for use with Raypak pool heaters. Connecting the heater's numerous sensors, switches, and control relays is the PCB, which serves as a central hub. It makes information sharing between these parts easier. The control system's memory and processor are housed on the PCB. In order to control the heater's operations, it collects sensor data (such as water temperature and flow rate), analyses it using pre-programmed logic, and then transmits control signals to various parts (such as the gas valve and pump). The heater's user interface and PCB may be linked, giving users the ability to change settings, track performance, and maybe get diagnostic data.
