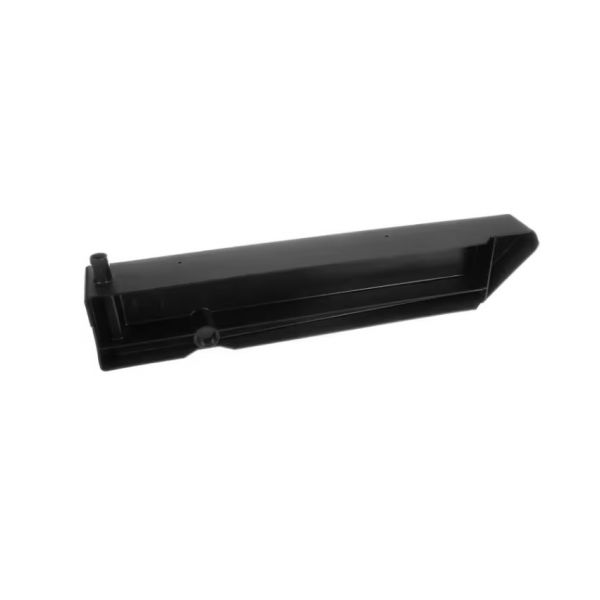

York S1-03200177001 Horizontal Drain Pan

Be the first to review this product
Special Price $89.47 Regular Price $170.95
In stock
SKU
S1-03200177001
The York S1-03200177001 Horizontal Drain Pan is a condensate control component used to gather and direct moisture generated during cooling in HVAC systems. It works by trapping water that is formed on the evaporator coil and diverting it through a drain outlet, avoiding the buildup of water internally. This pan is commonly found in the internal drainage systems of residential and commercial air handlers or horizontal coil assemblies and it is commonly used to assist in the, regulation of moisture removal. Its application enables HVAC systems to ensure proper airflow conditions and that the operating.
Add to Wish List
Refrigeration & Cooling, Condensate Drain Pans
Manufacturer:
https://www.partshnc.com/media/catalog/product/s/1/s1-03200177001.jpg
Write Your Own Review
You're reviewing:York S1-03200177001 Horizontal Drain Pan
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the York S1-03200177001 Drain Pan?

Regularly inspect the drain pan for cracks, corrosion, or standing water. Clean debris and ensure the pan is properly aligned and draining correctly. Proper maintenance prevents water damage, mold growth, and ensures safe HVAC operation.

What are common issues with the York S1-03200177001 Drain Pan?

  • Clogs or restricted drainage.
  • Cracks or corrosion causing leaks.
  • Improper alignment affecting water flow.
  • Accumulation of debris leading to standing water.

Installation Steps

Step 1: Turn off the HVAC system and disconnect power to ensure safety.

Step 2: Remove the access panels to reach the existing drain pan.

Step 3: Carefully slide out the old drain pan and clean the surrounding area.

Step 4: Position the new horizontal drain pan in place, ensuring proper alignment with the drain line.

Step 5: Secure the pan according to the unit’s mounting points.

Step 6: Reconnect power, restore the system, and check for proper drainage.
