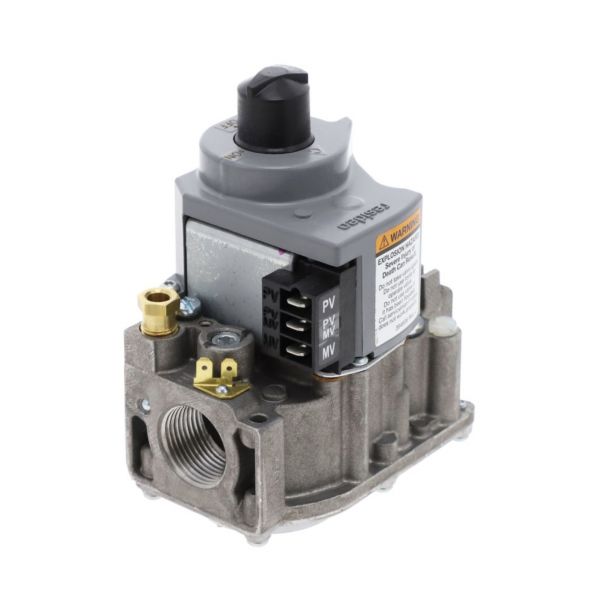

Resideo VR8304M3103/B Pilot Gas Valve 24V

Be the first to review this product
Special Price $98.42 Regular Price $113.19
In stock
SKU
VR8304M3103/B
The Resideo VR8304M3103/B Pilot Gas Valve is a highly flexible, 24V valve designed for single-stage heating applications. This reliable part controls the gas supply to the pilot burner and maintains proper ignition and smooth functioning of HVAC equipment. It works at 60Hz power and is designed to work well in temperatures of - 40°F to + 175°F, hence versatility. This gas valve is ideal for both residential and small commercial applications including furnaces, boilers and heaters. High pressure with 1/2 PSI, this tool provides versatility in the control of gas flow for enhanced burner performance and energy saving utility.
Add to Wish List
HVAC Controls & Electrical, Valves
Manufacturer:
https://www.partshnc.com/media/catalog/product/v/r/vr8304m3103-b.jpg

Specifications

  • Application: Single Stage
  • Frequency: 60 HZ
  • Voltage: 24 V
  • Temperature Range: -40°F to +175°F
  • Pressure Ratings: 1/2PSI
Manufacturer Name: Resideo
Product Number: VR8304M3103/B
OEM Part Number: VR8304M3103/B
Product Description: 24V 3.5" Wc 1/2"X3/4" Gas Vlv
Weight:1.66lbs/752.96g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Resideo VR8304M3103/B Pilot Gas Valve 24V
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Resideo VR8304M3103/B Pilot Gas Valve?

Regularly inspect the valve for leaks, corrosion, or debris buildup. Ensure pilot assembly and wiring connections are clean and secure. Proper maintenance ensures safe operation and consistent gas flow for reliable appliance performance.

What are common issues with the Resideo VR8304M3103/B Pilot Gas Valve?

  • Gas leaks or improper sealing.
  • Failure of the pilot to ignite.
  • Erratic gas flow or pressure inconsistencies.
  • Electrical or solenoid malfunctions.

Installation Steps

Step 1: Shut off gas supply and power to the appliance before beginning.

Step 2: Remove the existing pilot gas valve following the appliance manufacturer’s instructions.

Step 3: Install the new valve in the correct orientation, ensuring proper alignment with gas lines.

Step 4: Connect the control wiring according to the wiring diagram.

Step 5: Tighten all fittings securely and check for leaks using a soapy water solution.

Step 6: Restore gas and power, then test the system to confirm proper pilot ignition and operation.
