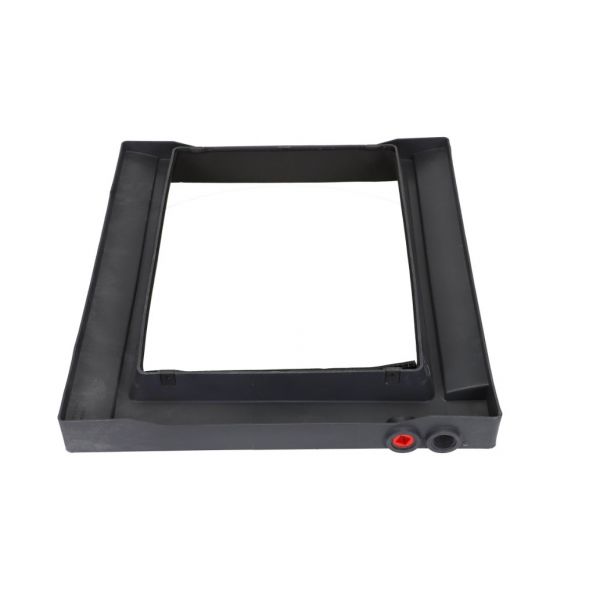

Lennox 17D77 Drain Pan Assembly 21"X17"

Rating:
5 5 1
1  Review Add Your Review
Special Price $183.89 Regular Price $211.47
Out of stock
SKU
17D77
The Lennox 17D77 Drain Pan Assembly is a condensate-collecting component used to maintain the moisture that is generated during the cool process in the HVAC system. The warm air flows over the evaporator coil, condensed water appears on the coil surface and runs into the pan, whereby it is channeled to the outlet connection. The assembly has a size of 21" by 17" pan size, which fits under evaporator coil under air handler or indoor unit. It is located beneath the coil section and gathers condensate redirecting it to the attached outlet line when the system is in operation.
Add to Wish List
Refrigeration & Cooling, Condensate Drain Pans
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/7/17d77.jpg
Write Your Own Review
You're reviewing:Lennox 17D77 Drain Pan Assembly 21"X17"
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Lennox 17D77 Drain Pan Assembly?

Regularly clean the drain pan to remove debris, dirt, or standing water. Check for cracks or corrosion and ensure the pan is properly aligned. Keep surrounding areas dry to prevent mold growth and water damage.

What are common issues with the Lennox 17D77 Drain Pan Assembly?

  • Water leaks or pooling.
  • Cracks or warping of the pan.
  • Mold or algae buildup.
  • Improper fit causing drainage issues.

Installation Steps

Step 1: Turn off all power to the HVAC system and water supply if applicable.

Step 2: Remove the existing drain pan carefully, avoiding damage to surrounding components.

Step 3: Clean the area thoroughly to ensure proper seating of the new pan.

Step 4: Position the new drain pan assembly in place and secure it.

Step 5: Reconnect any associated drain lines and ensure proper slope for drainage.

Step 6: Restore power and water, then check for leaks during system operation.
