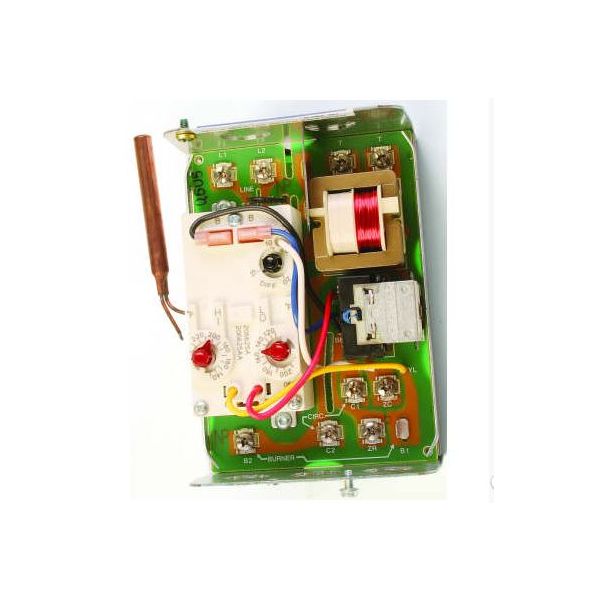

main product photo

Resideo L8124C1003 Triple Aquastat Relay Horizontal Mount

Be the first to review this product
Special Price $375.10 Regular Price $416.36
In stock
SKU
L8124C1003
The Resideo L8124C1003 Triple Aqua Thermostat Relay is intended for use in hydronic heating systems where temperature and system control are necessary. This horizontal mount relay is designed to function in a temperature of 130°F to 240°F to meet different heating requirements. This one is powered by a 24V supply and can manage up to 7.4 amps, so it is efficient. The L8124C1003 has a frequency of 60Hz; that is favorable to standard HVAC operating frequency. This relay regulates several circuits at once; it is suitable for heater systems where there will be different zones. With this relay incorporated, users of these systems receive more efficient temperature regulation throughout the device or system.
Add to Wish List
HVAC Controls & Electrical, Relays,
Manufacturer:

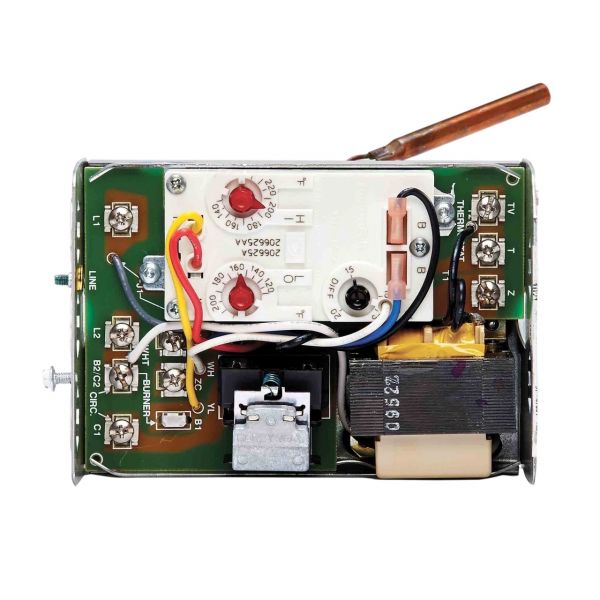

https://www.partshnc.com/media/catalog/product/l/8/l8124c1003.jpg

Specifications

  • Application: Triple Aquastat Relay
  • Mounting Type: Horizontal Mount
  • Range of Temperature: 130°F to 240°F
  • Voltage: 24V
  • Amperage: 7.4A
  • Frequency: 60Hz
Manufacturer Name: Resideo
Product Number: L8124C1003
OEM Part Number: L8124C1003
Product Description: Tripleaquastatrelayhorz.
Weight:3.11lbs/1410.67g

Choose the best HVAC equipment parts and supplies from PartsHNC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Resideo L8124C1003 Triple Aquastat Relay Horizontal Mount
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Resideo L8124C1003 Aquastat Relay?

Regularly inspect the relay for dust, corrosion, or loose electrical connections. Clean contacts gently and ensure proper mounting alignment. Proper maintenance ensures accurate temperature control and safe operation. Always disconnect power before performing any checks.

What are common issues with the Resideo L8124C1003 Aquastat Relay?

  • Inaccurate temperature readings or control.
  • Loose or corroded electrical connections.
  • Failure to activate or deactivate properly.
  • Physical damage to the relay housing.

Installation Steps

Step1: Turn off power before starting.

Step2: Remove the old relay if present.

Step3: Clean the mounting area to ensure proper contact.

Step4: Position the new relay horizontally and secure it in place.

Step5: Connect the wiring according to the manufacturer’s diagram.

Step6: Double-check all connections for safety.

Step7: Restore power and test the relay for proper operation.
