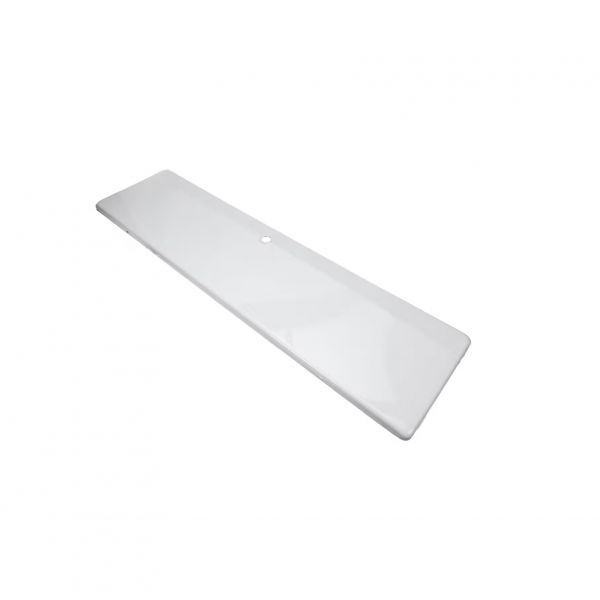

main product photo

Heatcraft 40480206 Condensate Pan

Be the first to review this product
Special Price $235.61 Regular Price $502.95
In stock
SKU
40480206
The Heatcraft Refrigeration 40480206 Condensate Pan collects and diverts the moisture generated during the cooling process to avoid water build-up inside the unit. It directs condensate to the drain outlet through the use of a sloped surface that facilitates a constant flow of water. Located below the evaporator coil in HVAC systems it combines with the drainage system to control the removal of moisture. Its application aids, in preventing overflowing water, aids in proper drainage, and ensures uniformity in the operation of the equipment by avoiding the accumulation of moisture internally.
Add to Wish List
Refrigeration & Cooling, Condensate Drain Pans
Manufacturer:
https://www.partshnc.com/media/catalog/product/4/0/40480206.jpg
Write Your Own Review
You're reviewing:Heatcraft 40480206 Condensate Pan
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Heatcraft 40480206 Condensate Pan?

Clean the pan regularly to remove dirt, algae, and debris. Check for leaks or damage and ensure it is properly positioned. Keeping the pan clear prevents water overflow and maintains efficient condensate drainage.

What are common issues with the Heatcraft 40480206 Condensate Pan?

  • Leaking due to material damage.
  • Blockages from debris or algae.
  • Improper alignment causing water pooling.
  • Corrosion or material wear.

Installation Steps

Step 1: Ensure the HVAC unit is powered off before starting.

Step 2: Remove the old pan carefully, checking for water damage.

Step 3: Position the new condensate pan securely under the coil or evaporator.

Step 4: Connect the drain line to the pan outlet, ensuring no kinks.

Step 5: Verify proper slope for drainage and test by pouring water.

Step 6: Restore power and monitor for leaks.
