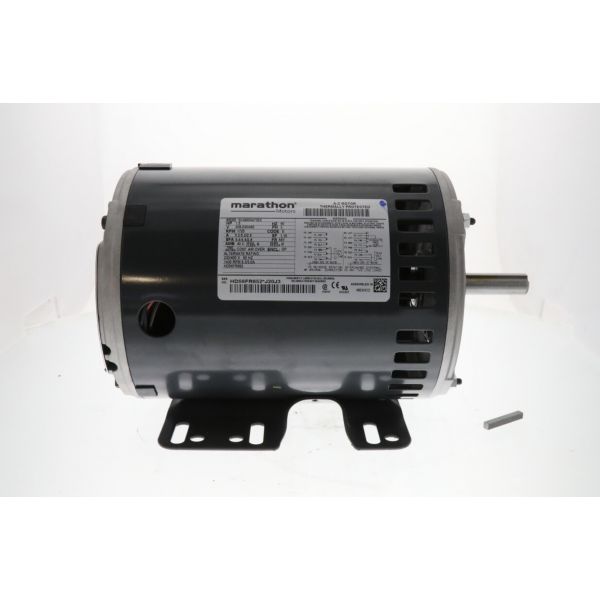

Carrier HD56FR652 Blower Motor 208-230V 3Phase 1725RPM

Rating:
5 5 1
1  Review Add Your Review
Special Price $981.06 Regular Price $1,249.67
In stock
SKU
HD56FR652
The Carrier HD56FR652 is a belt-drive blower motor which is an essential part of furnishing the forced-air HVAC systems and various other types of systems such as the gas furnace and the electric heat pump. It directly spins a fan that draws air through the system’s filters, heating or cooling element and then into your living space. In the PSC motor, a capacitor is incorporated to enhance the starting torque and stability during the running condition. It uses a three-phase electrical supply system normally used in commercial HVAC systems, with a voltage of 208-230V and a frequency of 50 Hz. The clockwise rotation of this motor and 1725 RPM guarantee proper airflow in your ducts.
Add to Wish List
Motors & Capacitors, Blower Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/H/D/HD56FR652_Carrier_partshnc.jpg

Specifications

  • Length: 12 "
  • Width: 6.5 "
  • Height: 7.5 "
  • Weight: 26.26lbs
  • Voltage: 208-230V
  • Frequency: 50 Hz
  • Motor Type: PSC
  • Rotation: Counter Clockwise
  • Phase: 3
  • Frame: 56
  • RPM: 1725
Manufacturer Name: Carrier
Product Number: HD56FR652
OEM Part Number: HD56FR652
Product Description: 208-230V3ph 1725Rpm Blower Mtr
Weight:26.26lbs/11911.33g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews 1
Write Your Own Review
You're reviewing:Carrier HD56FR652 Blower Motor 208-230V 3Phase 1725RPM
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Carrier HD56FR652 Blower Motor?

Inspect and lubricate bearings periodically and ensure electrical connections are tight. Clean dust buildup from the motor housing to prevent overheating. Regular maintenance ensures efficient performance and reduces unexpected breakdowns. Always disconnect power before servicing for safety.

What are common issues with the Carrier HD56FR652 Blower Motor?

  • Overheating due to dust buildup or blocked airflow.
  • Bearing wear causing noise or vibration.
  • Electrical connection failure or phase imbalance.
  • Reduced speed or inconsistent rotation performance.
  • Motor winding damage from voltage fluctuations or prolonged overload conditions.

Installation Steps

Step 1: Disconnect the equipment power for safety before servicing.

Step 2: Remove HVAC access panel carefully set aside safely.

Step 3: Disconnect and label wiring connections note terminal positions.

Step 4: Remove mounting bolts and old motor assembly ensure shaft orientation correct.

Step 5: Install new motor and secure alignment firmly tighten set screws.

Step 6: Reconnect wiring per diagram carefully.

Step 7: Restore power and test operation airflow monitor startup noise.
