main product photo

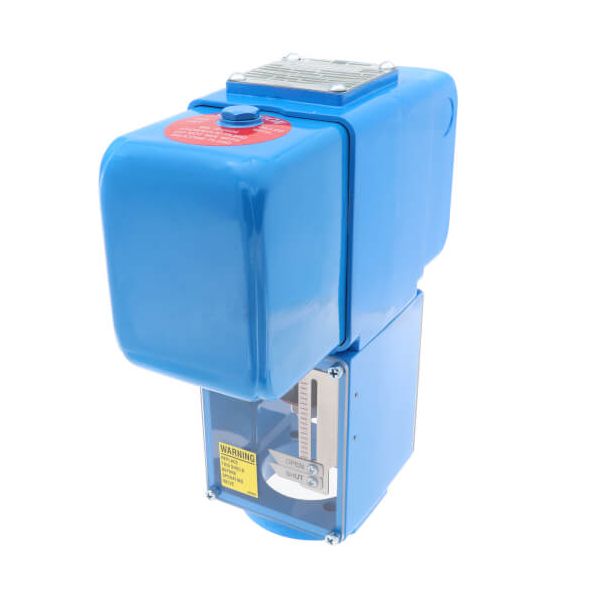

Asco H10B620B5F1 Actuator W/Auxiliary Switch SPDT 120V

Rating:
5 5 2
2  Reviews Add Your Review
Special Price $6,603.31 Regular Price $7,329.67
In stock
SKU
H10B620B5F1
The ASCO H10B620B5F1 Actuator is an essential part of an HVAC system. Used to provide accurate control in different operations in the system and designed with 120V, it has an auxiliary switch of single pole double throw to facilitate the ON-OFF operation of valves. This part pulls energized and extends with the help of an internal return spring when it is not energized. Its construction makes it long-lasting and easy to install and is commonly used for system applications and other automation projects. The benefits are enhanced operational dependability, low maintenance requirements, and flexibility in system use.
Add to Wish List
Manufacturer:
https://www.partshnc.com/media/catalog/product/h/1/h10b620b5f1_asco_partshnc.jpg

Specifications

  • Type: Actuator
  • Voltage: 120V
  • Auxiliary Switch: SPDT
Manufacturer Name: ASCO
Product Number: H10B620B5F1
OEM Part Number: H10B620B5F1
Product Description: 120Vactuator W/Auxsw.Spdt
Weight:13.26lbs/6014.63g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews 2
Write Your Own Review
You're reviewing:Asco H10B620B5F1 Actuator W/Auxiliary Switch SPDT 120V
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Asco H10B620B5F1 Actuator?

Regularly inspect the actuator and switch for dust, corrosion, or mechanical obstruction. Ensure electrical connections are secure and test proper SPDT switching operation. Lubricate moving parts if specified by the manufacturer. Follow safety procedures when working with energized components.

What are common issues with the Asco H10B620B5F1 Actuator?

  • Failure to actuate fully or intermittently.
  • Incorrect SPDT switching operation.
  • Mechanical binding or obstruction in movement.
  • Overheating during prolonged operation.

Installation Steps

Step 1: Turn off all power to the system for safety.

Step 2: Remove the existing actuator from the damper or control assembly.

Step 3: Disconnect wiring and any mechanical linkages carefully.

Step 4: Install the new actuator with auxiliary switch, ensuring proper alignment and secure mounting.

Step 5: Reconnect wiring, restore power, and test actuator movement and switch operation.
