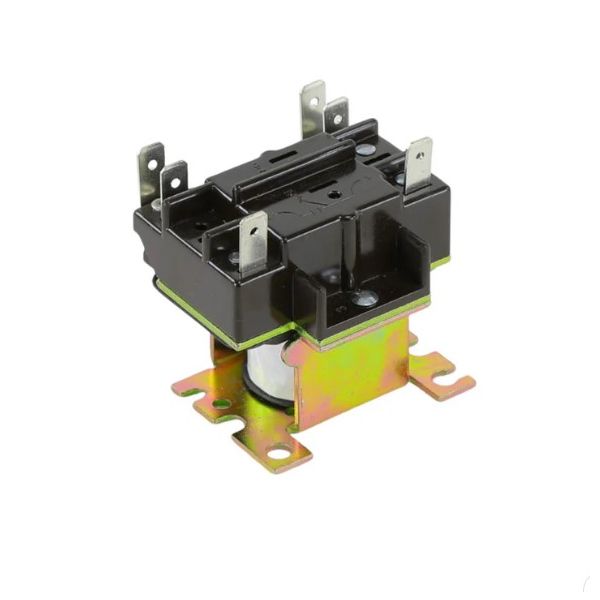

main product photo

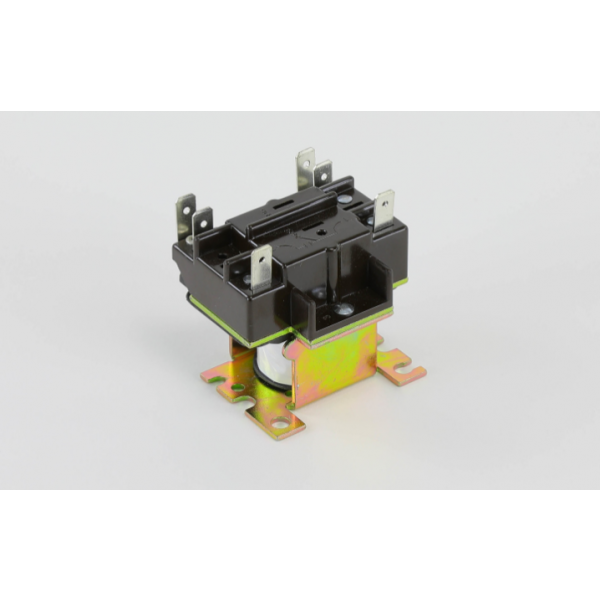

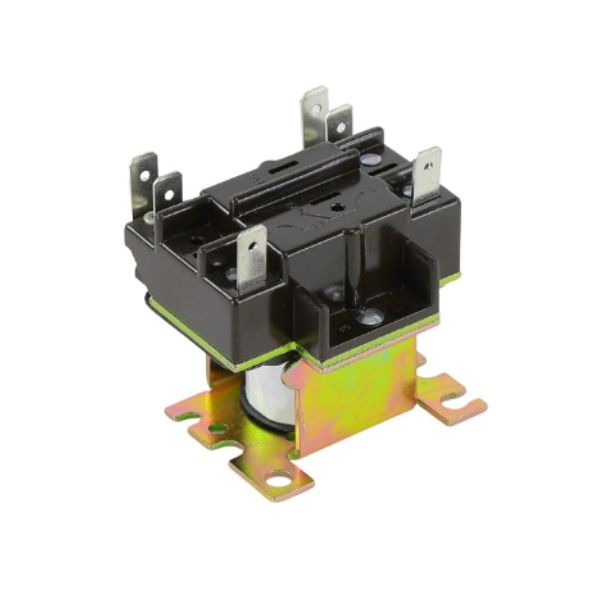

Titus HVAC 10156901 Fan Relay 24 VAC Coil

Be the first to review this product
Special Price $136.41 Regular Price $156.87
In stock
SKU
10156901
The Titus HVAC 10156901 Fan Relay Coil is a highly efficient component for control in HVAC systems. It operates at 24 VAC and turns on the fan motor when the thermostat sends signals to it to maintain the proper airflow and temperature. This is commonly used in air handlers and furnaces and provides consistent switching operation. This is suitable for residential and commercial units and contributes to energy-efficient operation and improved indoor comfort this making it a practical choice of a durable control solution.
Add to Wish List
HVAC Controls & Electrical, Relays,
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/0/10156901_1.jpg

Specifications

  • Product Type: Fan Relay
  • Coil Voltage: 24 VAC
Manufacturer Name: Titus HVAC
Product Number: 10156901
OEM Part Number: 10156901
Product Description: Titus Fan Relay 24Vac Coil
Weight:0.36lbs/163.29g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Titus HVAC 10156901 Fan Relay 24 VAC Coil
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Titus HVAC 10156901 Fan Relay?

Regularly inspect the relay for dust, corrosion, or loose wiring. Clean contacts carefully and ensure the coil operates without obstruction. Verify secure mounting and disconnect power before performing any maintenance to ensure safety.

What are common issues with the Titus HVAC 10156901 Fan Relay?

  • Failure to engage the fan consistently.
  • Clicking or buzzing noises during operation.
  • Burned or pitted contacts affecting connectivity.
  • Loose or corroded wiring connections.

Installation Steps

Step 1: Ensure all power is turned off before handling.

Step 2: Remove the old fan relay carefully, keeping mounting hardware.

Step 3: Position the new fan relay and align it with the mounting points.

Step 4: Secure the relay with screws, ensuring a firm fit.

Step 5: Reconnect wiring according to specifications.

Step 6: Restore power and test the fan relay for proper operation.
